COMPASS Validation#

Here we give a brief overview of the results of known COMPASS validation efforts.

COMPASS validation is an ongoing effort, and we will update this page as new results become available.

Geothermal Heat Pump Document Collection Validation (June 2026)#

This validation was for the document collection portion only.

Info#

  • COMPASS Version: v0.22.0

  • Number of Documents: 50 (Assuming 10,000 jurisdictions, there is a 95% chance that the metrics are within ±13.83% of the reported value)

  • Features: None

  • Procedure Validated: Document collection from web

  • LLM(s) used: OpenAI GPT-4.1-mini, GPT-5-mini, OpenAI GPT-5.4

Results#

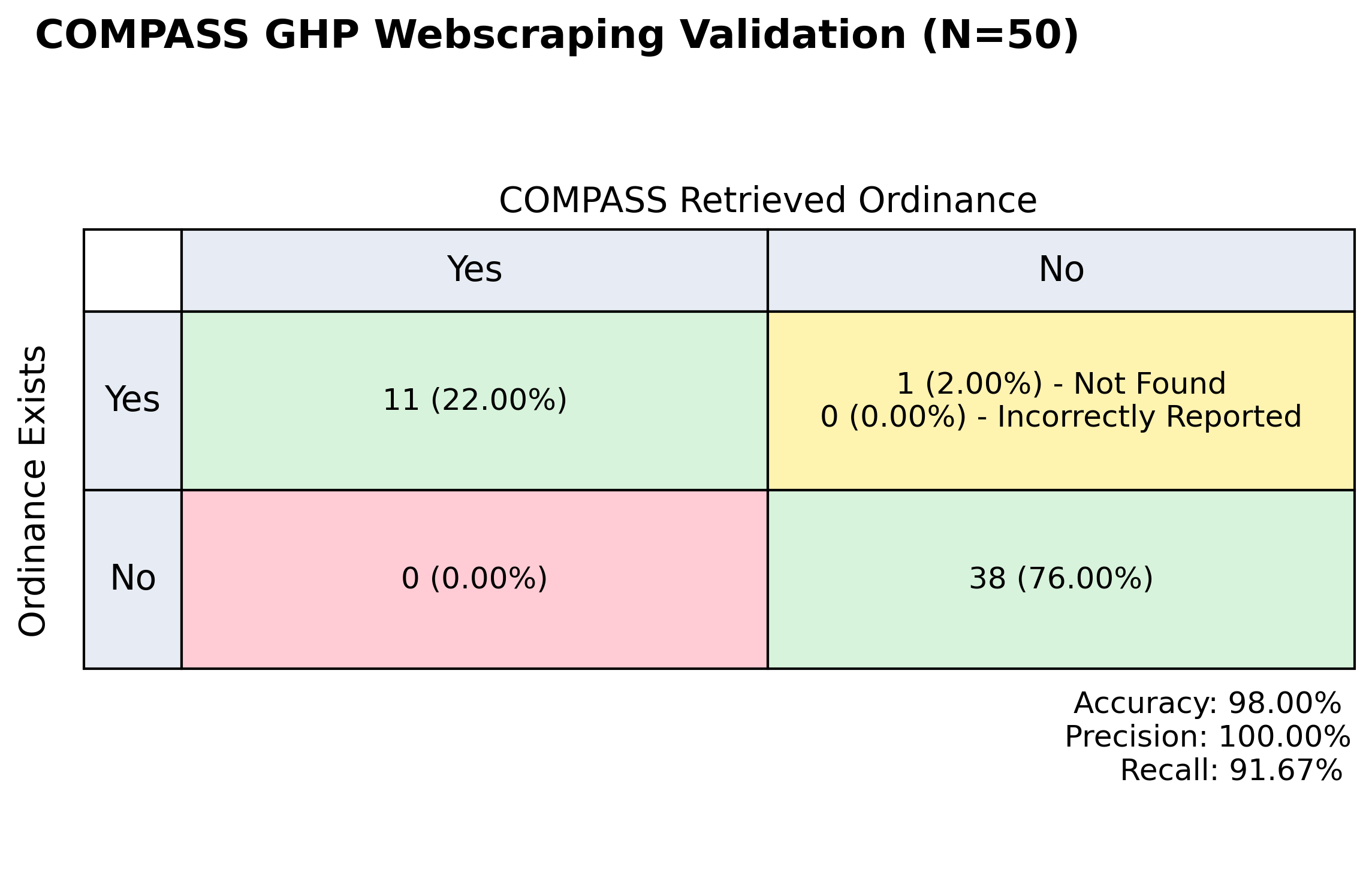

../_images/geothermal_heat_pump_web_scraping_june_2026.png

Transmission Line Document Collection Validation (June 2026)#

This validation was for the document collection portion only.

Info#

  • COMPASS Version: v0.18.1

  • Number of Documents: 50 (Assuming 10,000 jurisdictions, there is a 95% chance that the metrics are within ±13.83% of the reported value)

  • Features: None

  • Procedure Validated: Document collection from web

  • LLM(s) used: OpenAI GPT-4.1-mini, OpenAI GPT-5

Results#

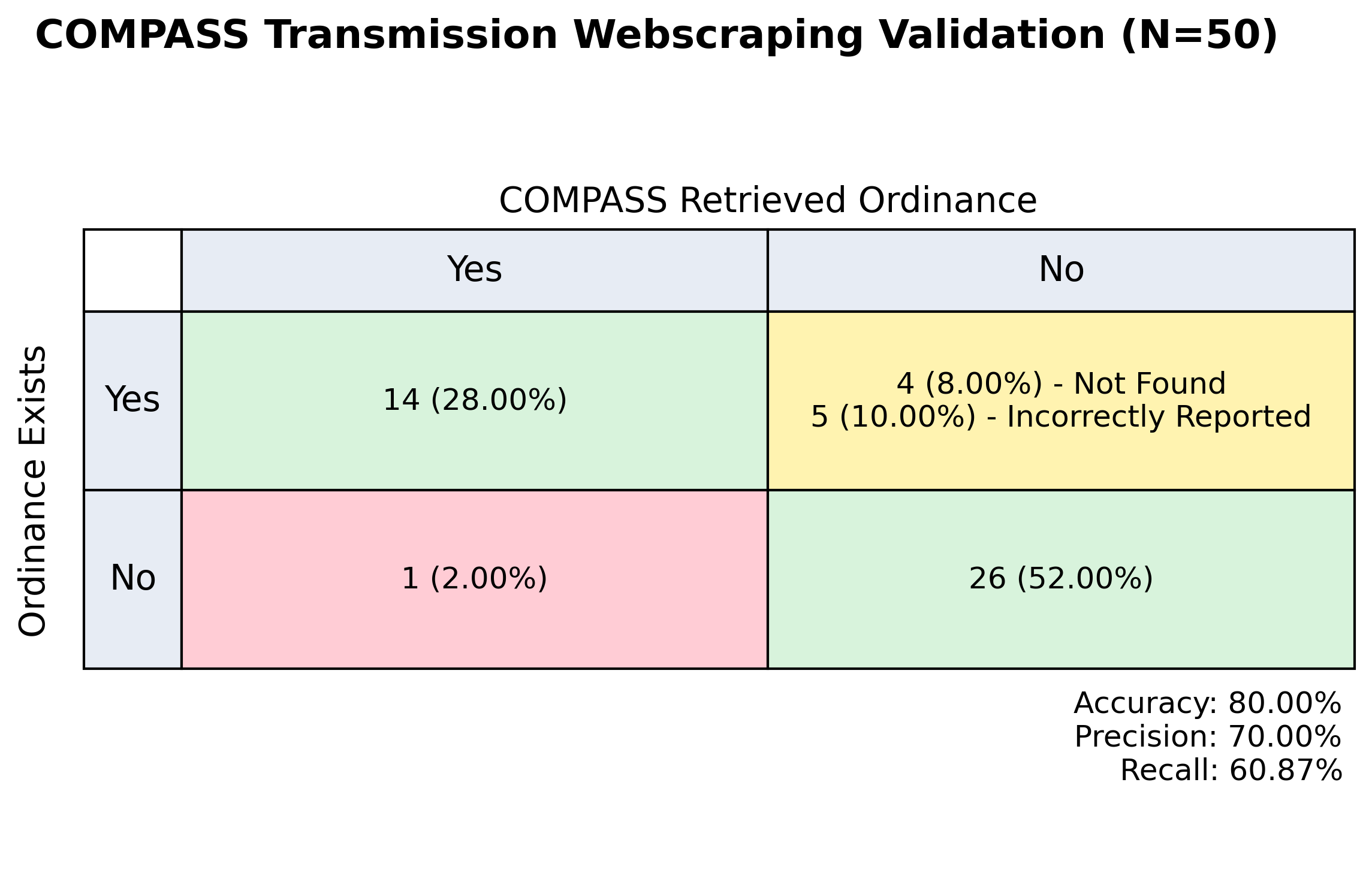

../_images/transmission_web_scraping_june_2026.png

Geothermal Electricity Document Collection Validation (May 2026)#

This validation was for the document collection portion only.

Info#

  • COMPASS Version: v0.15.2

  • Number of Documents: 100 (Assuming 10,000 jurisdictions, there is a 95% chance that the metrics are within ±9.75% of the reported value)

  • Features: None

  • Procedure Validated: Document collection from web

  • LLM(s) used: OpenAI GPT-4.1, OpenAI GPT-5

Results#

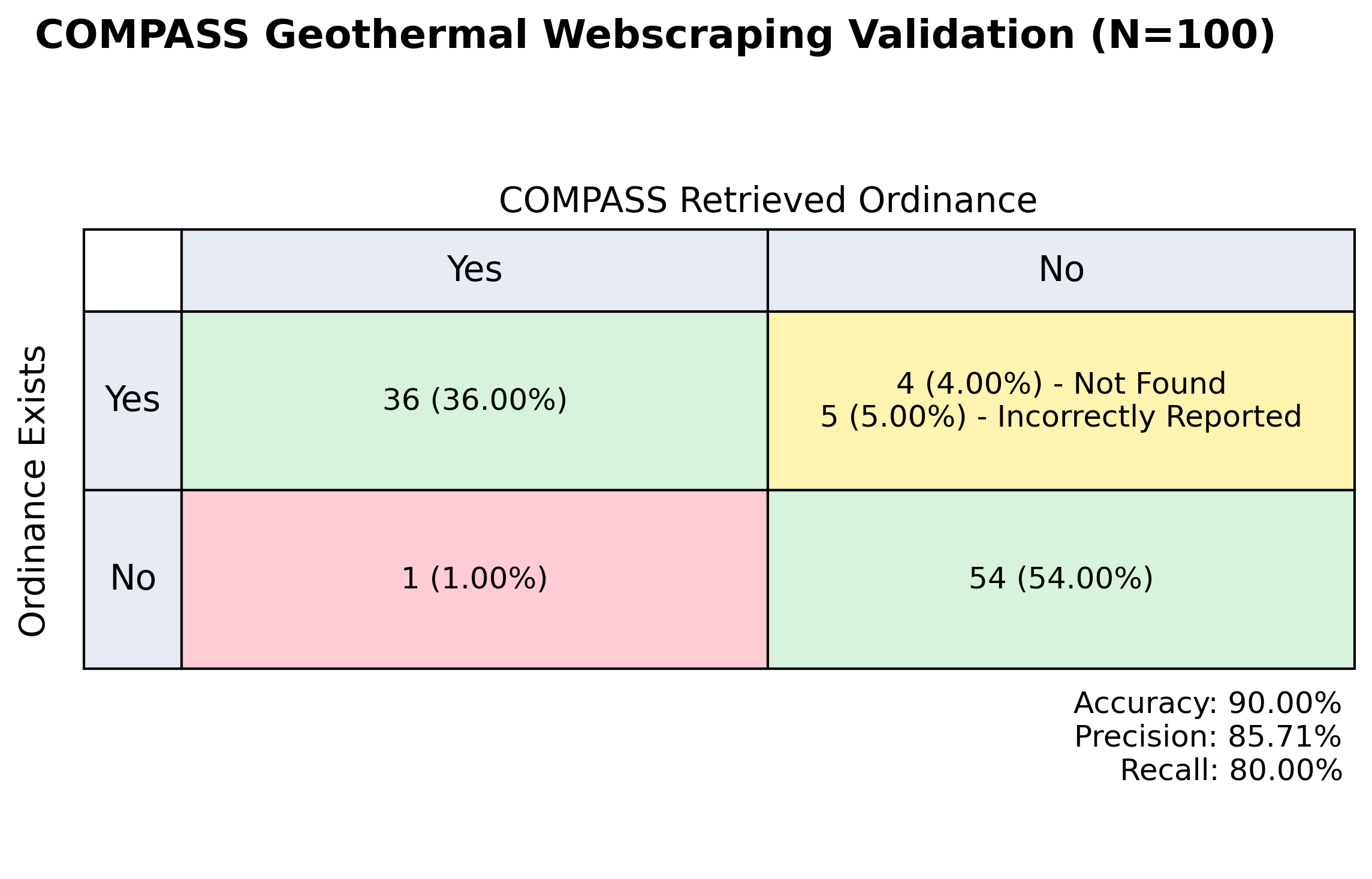

../_images/geothermal_electricity_web_scraping_may_2026.png

Wind Document Collection Validation (September 2025)#

This validation was for the document collection portion only.

Info#

  • COMPASS Version: v0.8.2

  • Number of Documents: 100 (Assuming 10,000 jurisdictions, there is a 95% chance that the metrics are within ±9.75% of the reported value)

  • Features: None

  • Procedure Validated: Document collection from web

  • LLM(s) used: OpenAI GPT-4o-mini, OpenAI GPT-4.1-nano, OpenAI GPT-4.1-mini, OpenAI GPT-4.1

Results#

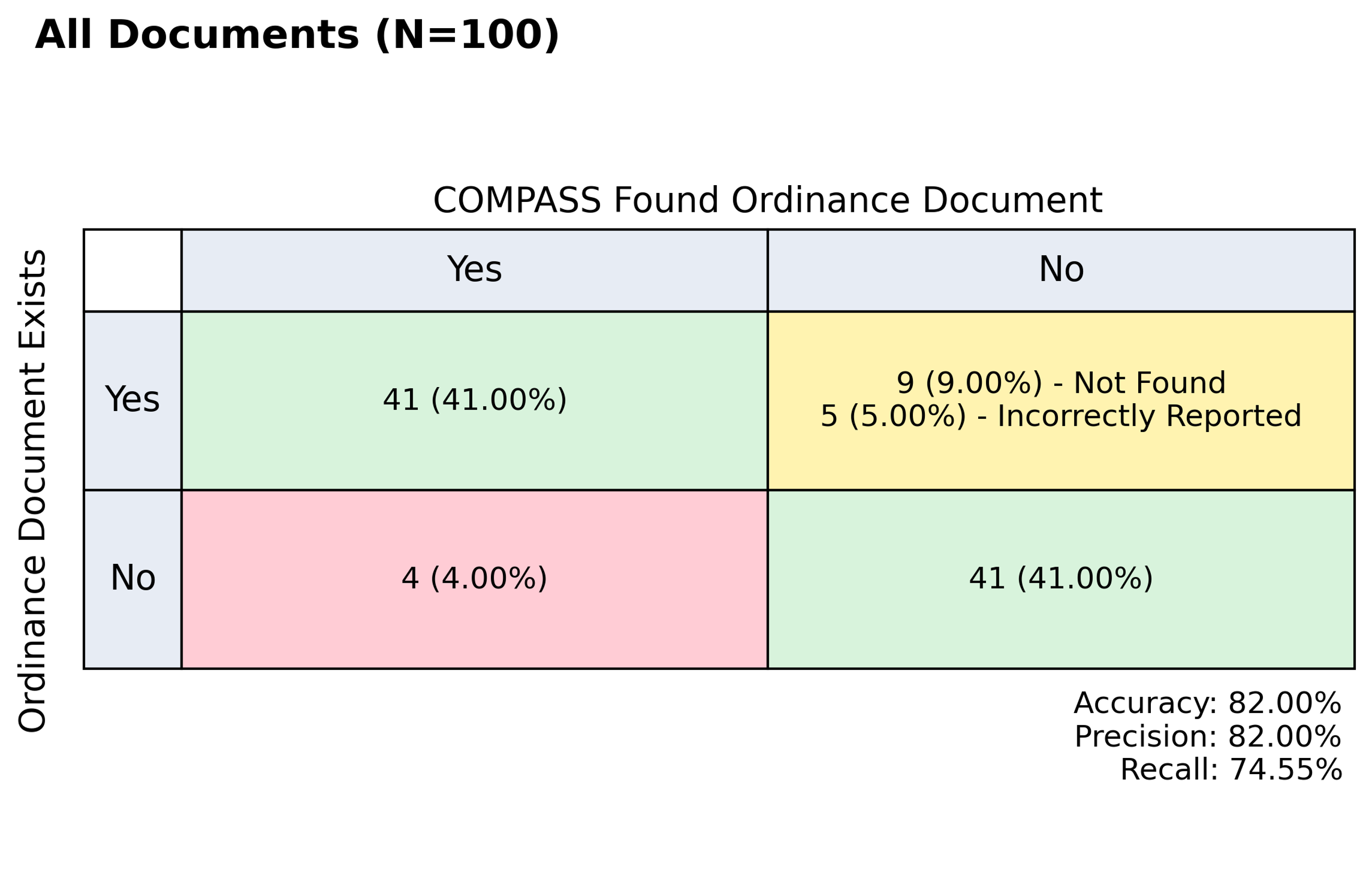

../_images/wind_web_scraping_september_2025.png

Solar Validation (August 2025)#

This validation was for the ordinance value extraction portion only (assume documents are correct and belong to the correct jurisdiction).

This validation focused on the model ability to extract structured ordinance data from unstructured wind ordinance text documents.

Info#

  • COMPASS Version: v0.7.0

  • Number of Documents: 78 (Assuming 10,000 jurisdictions, there is a 95% chance that the metrics are within ±11.05% of the reported value)

  • Features:

    • structures (participating)

    • property line (participating)

    • structures (non-participating)

    • property line (non-participating)

    • roads

    • railroads

    • transmission

    • water

    • noise

    • maximum height

    • maximum project size

    • minimum lot size

    • maximum lot size

    • density

    • coverage

    • prohibitions

    • decommissioning

    • glare

    • visual impact

    • primary use districts

    • special use districts

    • accessory use districts

    • ordinance effective year

  • Procedure Validated: Ordinance extraction from documents

  • LLM(s) used: OpenAI GPT-4.1-nano, OpenAI GPT-4.1-mini, OpenAI GPT-4.1

Results#

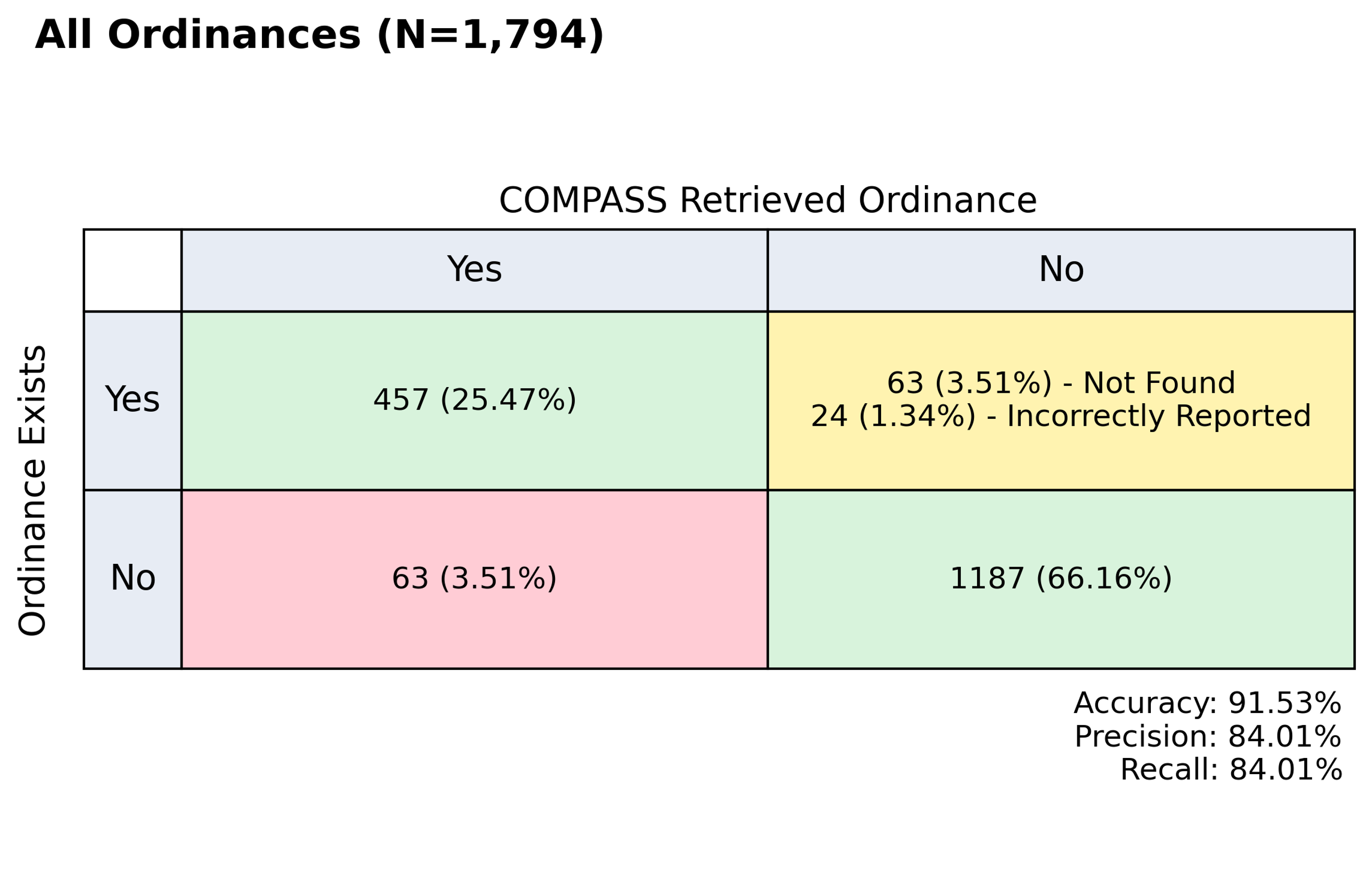

../_images/solar_val_aug_2025.png

Mini Wind Validation (June 2025)#

This validation was for the ordinance value extraction portion only (assume documents are correct and belong to the correct jurisdiction).

This validation effort is meant primarily as a sanity check and as a stepping stone to:

  • Perform a larger validation effort for solar ordinance values, and

  • Begin a CONUS-level COMPASS run for wind ordinance collection.

Warning

The number of documents examined is extremely small compared to the total number of jurisdictions. Interpret all results with extreme caution!

Info#

  • COMPASS Version: v0.5.0

  • Number of Documents: 19 (Assuming 6,000 jurisdictions, there is a 95% chance that the metrics are within ±22.45% of the reported value)

  • Features:

    • structures (participating)

    • structures (non-participating)

    • property line (participating)

    • property line (non-participating)

    • roads

    • railroads

    • transmission

    • water

    • noise

    • maximum height

    • maximum project size

    • minimum lot size

    • maximum lot size

    • shadow flicker

    • tower density

    • blade clearance

    • primary use districts

    • special use districts

    • accessory use districts

    • color

    • decommissioning

    • lighting

    • prohibitions

    • visual impact

    • ordinance effective year

  • Procedure Validated: Ordinance extraction from documents

  • LLM(s) used: OpenAI GPT-4o-mini

Results#

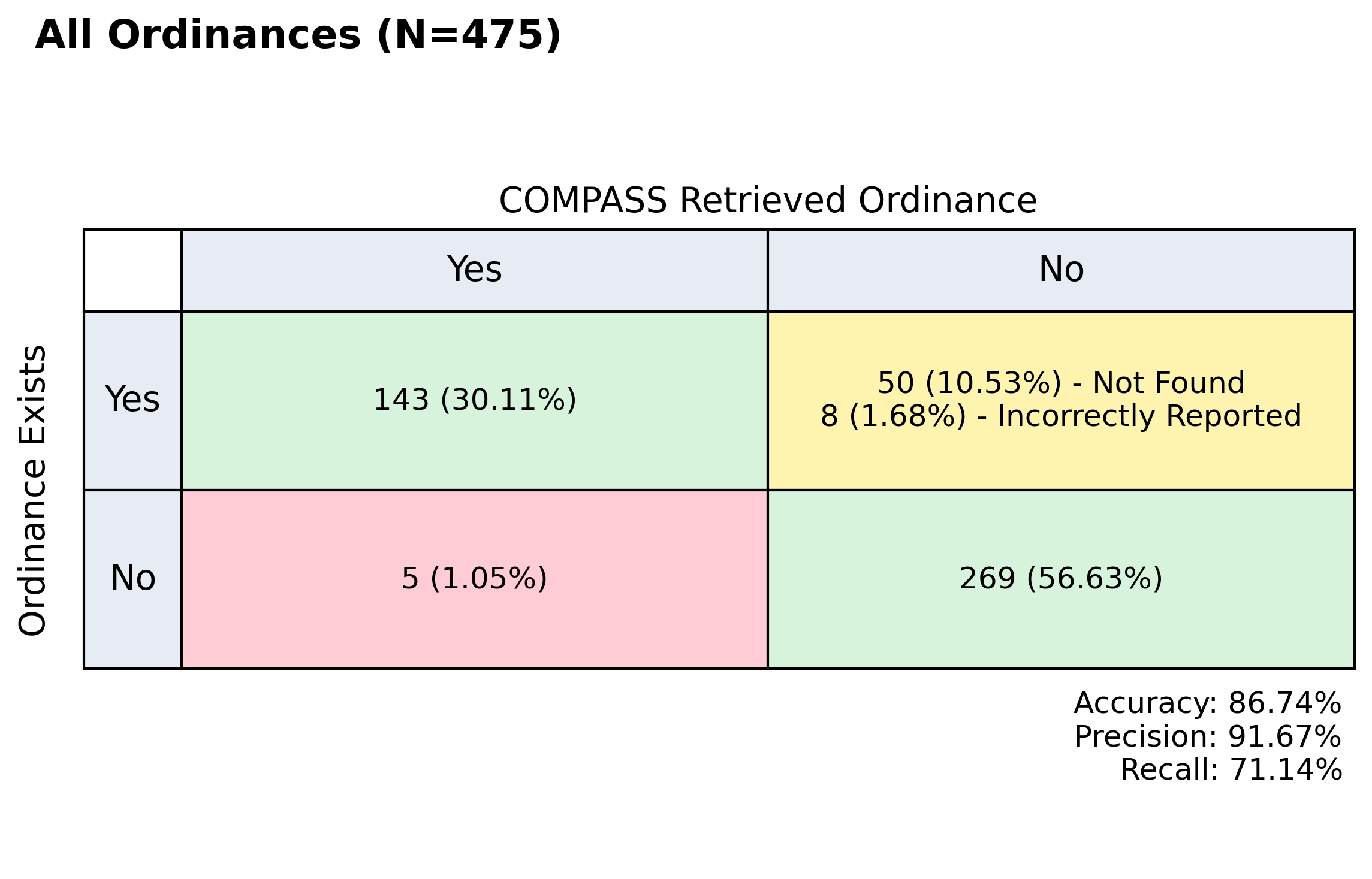

../_images/wind_mini_june_2025.png

Wind Validation (January 2024)#

This validation was for the ordinance value extraction portion only (assume documents are correct and belong to the correct jurisdiction).

This is the original model validation, focusing on the model ability to extract structured ordinance data from unstructured wind ordinance text documents.

Info#

  • COMPASS Version: alpha

  • Number of Documents: 83 (Assuming 3,000 jurisdictions, there is a 95% chance that the metrics are within ±10.61% of the reported value)

  • Features:

    • structures setbac

    • property lines

    • roads

    • railroads

    • transmission

    • water

    • noise

    • maximum height

    • minimum lot size

    • shadow flicker

    • tower density

  • Procedure Validated: Ordinance extraction from documents

  • LLM(s) used: OpenAI GPT-4

Results#

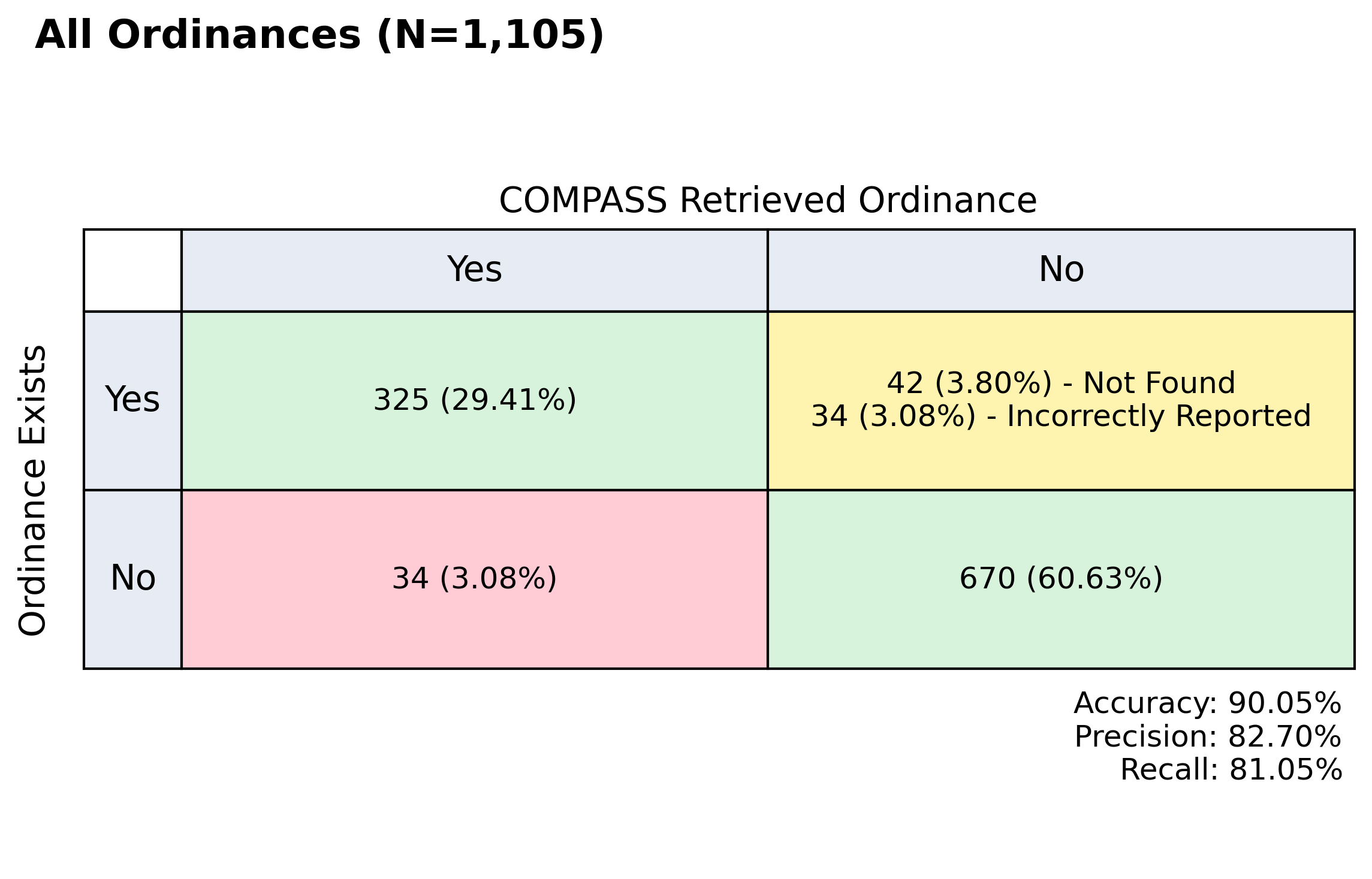

../_images/wind_jan_2024.png
