Standoff Monte Carlo#
See Monte Carlo - Arrhenius Degredation for a more in depth guide. Steps will be shortened for brevity. This journal applies a Monte Carlo to the Standoff Calculation
# if running on google colab, uncomment the next line and execute this cell to install the dependencies and prevent "ModuleNotFoundError" in later cells:
# !pip install pvdeg
import pvlib
import numpy as np
import pandas as pd
import json
import os
import pvdeg
from pvdeg import DATA_DIR
import matplotlib.pyplot as plt
# This information helps with debugging and getting support :)
import sys
import platform
print("Working on a ", platform.system(), platform.release())
print("Python version ", sys.version)
print("Pandas version ", pd.__version__)
print("Pvlib version ", pvlib.__version__)
print("Pvdeg version ", pvdeg.__version__)
Working on a Linux 6.17.0-1022-azure
Python version 3.11.16 (main, Aug 13 2026, 02:46:14) [GCC 13.3.0]
Pandas version 3.0.6
Pvlib version 0.16.1
Pvdeg version 0.1.dev1+gfd5c616e3
Simple Standoff Calculation#
This is copied from another tutorial called 4 - Standards.ipynb, please visit this page for a more in depth explanation of the process for a single standoff calculation.
# Load weather data from locally saved files to avoid API rate limits
WEATHER = pd.read_csv(
os.path.join(DATA_DIR, "psm4_nyc.csv"), index_col=0, parse_dates=True
)
with open(os.path.join(DATA_DIR, "meta_nyc.json"), "r") as f:
META = json.load(f)
# To use the NSRDB API instead, uncomment the lines below and add your API key
# Get your API key at: https://developer.nlr.gov/signup/
# weather_db = "PSM4"
# weather_id = (40.633365593159226, -73.9945801019899) # Manhattan, NYC
# weather_arg = {
# "api_key": "YOUR_API_KEY",
# "email": "user@mail.com",
# "map_variables": True,
# }
# WEATHER, META = pvdeg.weather.get(weather_db, weather_id, **weather_arg)
# simple standoff calculation
height1 = pvdeg.standards.standoff(weather_df=WEATHER, meta=META)
# more arguments standoff calculation
height2 = pvdeg.standards.standoff(
weather_df=WEATHER,
meta=META,
tilt=None,
azimuth=180,
sky_model="isotropic",
temp_model="sapm",
x_0=6.1,
wind_factor=0.33, # default
)
print(height1)
print(height2)
The array surface_tilt angle was not provided, therefore the latitude of 40.6 was used.
The array azimuth was not provided, therefore an azimuth of 180.0 was used.
The array surface_tilt angle was not provided, therefore the latitude of 40.6 was used.
x T98_0 T98_inf
0 0.522443 71.778148 48.754265
x T98_0 T98_inf
0 0.490293 71.778148 48.754265
Defining Correlation Coefficients, Mean and Standard Deviation For Monte Carlo Simulation#
We will leave the list of correlations blank because our variables are not correlated. For a correlated use case visit the Monte Carlo - Arrhenius.ipynb tutorial.
Mean and standard deviation must always be populated if being used to create a dataset. However, you can feed your own correlated or uncorrelated data into the simulate function but column names must be consistent.
# These numbers may not make sense in the context of the problem but work for demonstraiting the process
stats = {"X_0": {"mean": 5, "stdev": 3}, "wind_factor": {"mean": 0.33, "stdev": 0.5}}
corr_coeff = []
samples = pvdeg.montecarlo.generateCorrelatedSamples(corr_coeff, stats, 500)
print(samples)
X_0 wind_factor
0 13.839748 -0.110299
1 4.331871 0.767020
2 3.985243 -0.132788
3 8.243097 0.214919
4 10.332241 1.141794
.. ... ...
495 4.022688 0.082930
496 6.956970 0.128109
497 2.214391 0.427487
498 5.907934 -0.287032
499 1.937661 1.357925
[500 rows x 2 columns]
Standoff Monte Carlo Inputs#
When using the pvdeg.montecarlo.simulate() function on a target function all of the target function’s required arguments must still be given. Our non-changing arguments will be stored in a dictionary. The randomized monte carlo input data will also be passed to the target function via the simulate function. All required target function arguments should be contained between the column names of the randomized input data and fixed argument dictionary,
# defining arguments to pass to the target function, standoff() in this case
function_kwargs = {
"weather_df": WEATHER,
"meta": META,
"azimuth": 180,
"tilt": 0,
"temp_model": "sapm",
"sky_model": "isotropic",
"conf_0": "insulated_back_glass_polymer",
"conf_inf": "open_rack_glass_polymer",
"T98": 70,
"irradiance_kwarg": {},
"conf_0_kwarg": {},
"conf_inf_kwarg": {},
"model_kwarg": {},
}
# notice how we left off parts we want to use in the monte carlo simulation because they are already contained in the dataframe
results = pvdeg.montecarlo.simulate(
func=pvdeg.standards.standoff,
correlated_samples=samples,
**function_kwargs,
)
Dealing With Series#
Notice how our results are contained in a pandas series instead of a dataframe.
This means we have to do an extra step to view our results. Run the block below to confirm that our results are indeed contained in a series. And convert them into a simpler dataframe.
print(type(results))
# Convert from pandas Series to pandas DataFrame
results_df = pd.concat(results.tolist()).reset_index(drop=True)
<class 'pandas.Series'>
print(results_df)
x T98_0 T98_inf
0 2.384466 73.671971 50.470696
1 0.000000 64.244180 44.102801
2 0.706516 73.770409 50.561791
3 0.345820 70.910215 48.755680
4 0.000000 56.809122 39.983014
.. ... ... ...
495 0.377669 72.009708 49.583024
496 0.539316 71.669293 49.290605
497 0.000000 68.644643 47.281445
498 1.281917 74.570671 51.138042
499 0.000000 51.864312 37.514299
[500 rows x 3 columns]
Viewing Our Data#

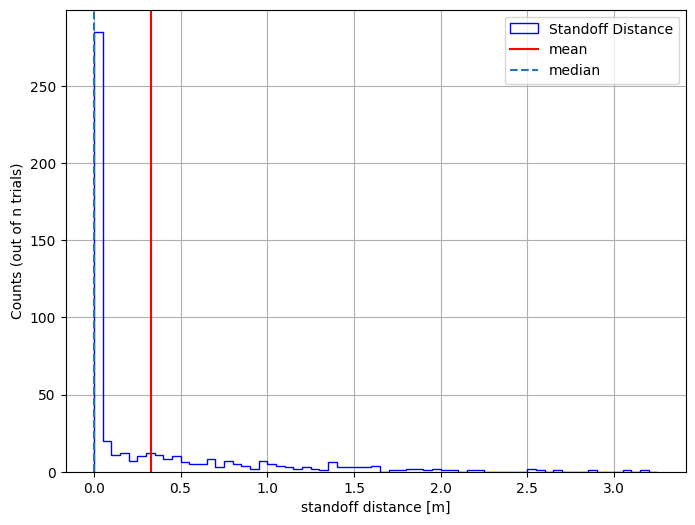

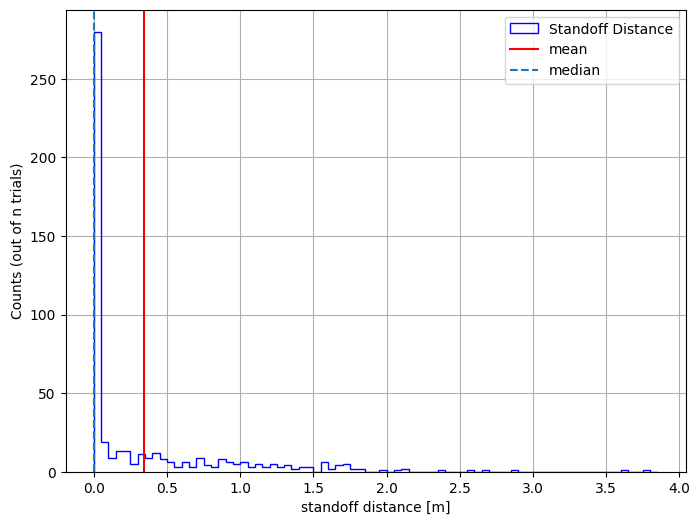

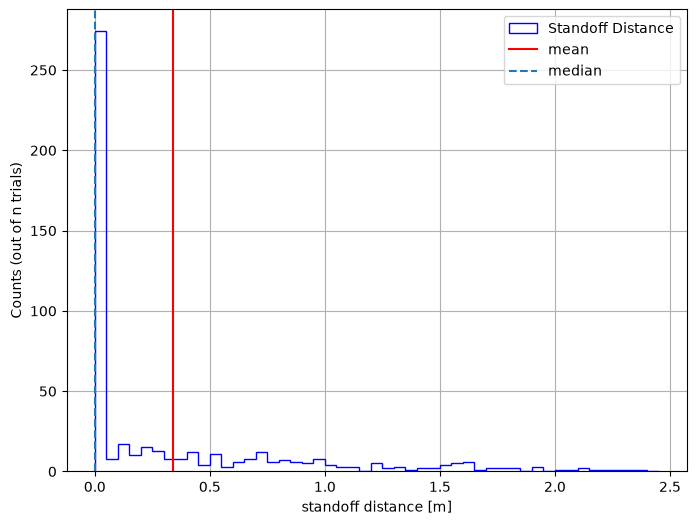

Let’s plot the results using a histogram
bin_edges = np.arange(results_df["x"].min(), results_df["x"].max() + 0.1, 0.05)
plt.figure(figsize=(8, 6))
plt.hist(
results_df["x"],
bins=bin_edges,
edgecolor="blue",
histtype="step",
linewidth=1,
label="Standoff Distance",
)
plt.ylabel("Counts (out of n trials)")
plt.xlabel("standoff distance [m]")
plt.axvline(np.mean(results_df["x"]), color="red", label="mean")
plt.axvline(np.median(results_df["x"]), linestyle="--", label="median")
plt.legend()
plt.grid(True)
plt.show()
