Ambient Temperature Example#
In this example, we'll demonstrate how to use RouteE Compass to plan routes that incorporate ambient temperature data for electric vehicles.
This builds off the Open Street Maps Example and assumes that we've already downloaded a road network, so be sure to check that one out first.
from nrel.routee.compass import CompassApp
import pandas as pd
import matplotlib.pyplot as plt
INFO:numexpr.utils:NumExpr defaulting to 4 threads.
First, we'll load the application from the pre-built configuration file that includes a traversal model that injects ambient temperature.
app = CompassApp.from_config_file("./denver_co/osm_default_temperature.toml")
graph edge list 0: /home/runner/work/routee-compass/routee-compass/docs/examples/denver_co/edges-compass.csv.gz: 48526it [00:00, 1692576.75it/s]
building adjacencies: 100%|██████████| 48526/48526 [00:00<00:00, 3715495.25it/s]
building adjacencies: 100%|██████████| 48526/48526 [00:00<00:00, 3708977.00it/s]
Basic Route With Mild Ambient Temperature#
Let's start with a basic route query for a 2016 Nissan Leaf 30 kWh with mild ambient temperature considerations and search for the shortest time route.
query = {
"origin_x": -104.969307,
"origin_y": 39.779021,
"destination_x": -104.975360,
"destination_y": 39.693005,
"model_name": "2016_Nissan_Leaf_30_kWh_Steady_Thermal",
"weights": {"trip_distance": 0, "trip_time": 1, "trip_energy_electric": 0},
"ambient_temperature": {"value": 72, "unit": "fahrenheit"},
}
result = app.run(query)
if "error" in result:
raise ValueError(f"Error: {result['error']}")
elif "route" not in result or result["route"] is None:
raise ValueError("No route found.")
else:
energy = result["route"]["traversal_summary"]["trip_energy_electric"]["value"]
print(
f"Ambient Temperature: {query['ambient_temperature']['value']} F, Trip Energy: {round(energy, 3)} kWh"
)
Ambient Temperature: 72 F, Trip Energy: 2.028 kWh
applying input plugin 1: 100%|██████████| 1/1 [00:00<00:00, 2816.48it/s]
applying input plugin 2: 100%|██████████| 1/1 [00:00<00:00, 1074113.88it/s]
search: 100%|██████████| 1/1 [00:00<00:00, 27.18it/s]

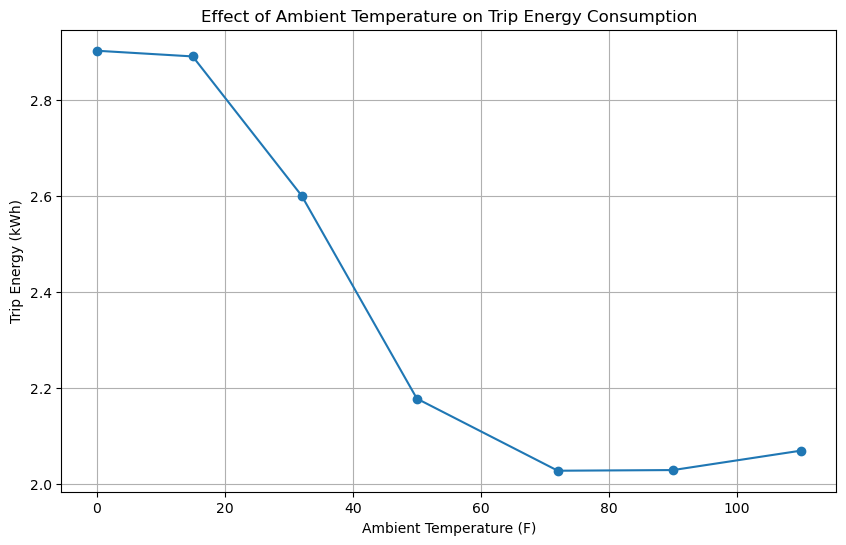

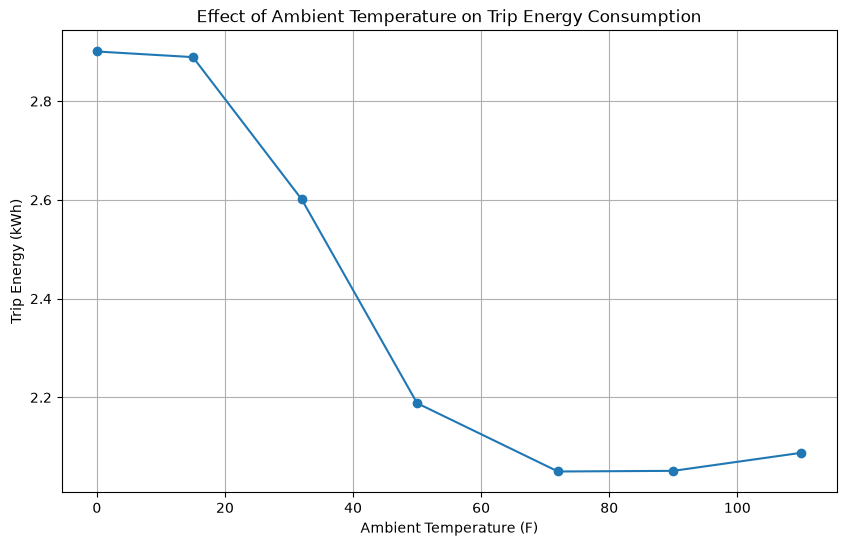

Next, let's look at how the ambient temperature affects the energy consumption by running the same route query with different temperature settings.
