Demonstrate energy ratio options#
The purpose of this notebook is to show some options in calculation of energy ratio
from pathlib import Path
import floris.layout_visualization as layoutviz
import matplotlib.pyplot as plt
import numpy as np
from floris import FlorisModel, TimeSeries
from flasc import FlascDataFrame
from flasc.analysis import energy_ratio as erp
from flasc.analysis.analysis_input import AnalysisInput
from flasc.data_processing import dataframe_manipulations as dfm
Generate dataset with FLORIS#
Use FLORIS to make a simple data set consisting of 4 turbines in a box, winds from the west, turbine 0/1 upstream, turbine 2/3 downstream
file_path = Path.cwd()
fm_path = file_path / "../floris_input_artificial/gch.yaml"
fm = FlorisModel(fm_path)
fm.set(layout_x=[0, 0, 5 * 126, 6 * 126], layout_y=[0, 5 * 126, 0, 5 * 126])

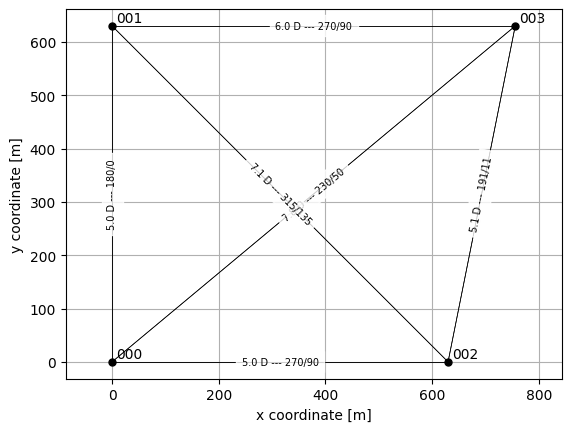

# # Show the wind farm
ax = layoutviz.plot_turbine_points(fm)
layoutviz.plot_turbine_labels(fm, ax=ax)
layoutviz.plot_waking_directions(fm, ax=ax)
ax.grid()
ax.set_xlabel("x coordinate [m]")
ax.set_ylabel("y coordinate [m]")
Text(0, 0.5, 'y coordinate [m]')
# Create a time history of points where the wind
# speed and wind direction step different combinations
ws_points = np.arange(5.0, 10.0, 1.0)
wd_points = np.arange(
250.0,
290.0,
2,
)
num_points_per_combination = 5 # How many "seconds" per combination
# I know this is dumb but will come back, can't quite work out the numpy version
ws_array = []
wd_array = []
for ws in ws_points:
for wd in wd_points:
for i in range(num_points_per_combination):
ws_array.append(ws)
wd_array.append(wd)
t = np.arange(len(ws_array))
wd_array = np.array(wd_array)
ws_array = np.array(ws_array)
print(f"Num Points {len(t)}")
fig, axarr = plt.subplots(2, 1, sharex=True)
axarr[0].plot(t, ws_array, label="Wind Speed")
axarr[0].set_ylabel("m/s")
axarr[0].legend()
axarr[0].grid(True)
axarr[1].plot(t, wd_array, label="Wind Direction")
axarr[1].set_ylabel("deg")
axarr[1].legend()
axarr[1].grid(True)
Num Points 500
# Compute the power of the second turbine for two cases
# Baseline: The front turbine is aligned to the wind
# WakeSteering: The front turbine is yawed 25 deg
fm.set(
wind_data=TimeSeries(
wind_directions=wd_array, wind_speeds=ws_array, turbulence_intensities=0.06
)
)
fm.run()
# Collect the turbine powers
power_0 = fm.get_turbine_powers()[:, 0].flatten() / 1000.0
power_1 = fm.get_turbine_powers()[:, 1].flatten() / 1000.0
power_2 = fm.get_turbine_powers()[:, 2].flatten() / 1000.0
power_3 = fm.get_turbine_powers()[:, 3].flatten() / 1000.0
# Assume all turbine measure wind direction with some noise
wd_0 = wd_array + np.random.randn(len(wd_array)) * 2
wd_1 = wd_array + np.random.randn(len(wd_array)) * 2
wd_2 = wd_array + np.random.randn(len(wd_array)) * 2
wd_3 = wd_array + np.random.randn(len(wd_array)) * 2
# Only collect the wind speeds of the upstream turbines
ws_0 = ws_array + np.random.randn(len(wd_array)) * 1
ws_1 = ws_array + np.random.randn(len(wd_array)) * 1
/opt/hostedtoolcache/Python/3.14.3/x64/lib/python3.14/site-packages/floris/core/flow_field.py:169: UserWarning: 'where' used without 'out', expect unitialized memory in output. If this is intentional, use out=None.
* np.power(
# Now build the dataframe
df = FlascDataFrame(
{
"pow_000": power_0,
"pow_001": power_1,
"pow_002": power_2,
"pow_003": power_3,
"ws_000": ws_0,
"ws_001": ws_1,
"wd_000": wd_0,
"wd_001": wd_1,
"wd_002": wd_2,
"wd_003": wd_3,
}
)
# Build the energy ratio input
a_in = AnalysisInput([df], ["baseline"], num_blocks=10)

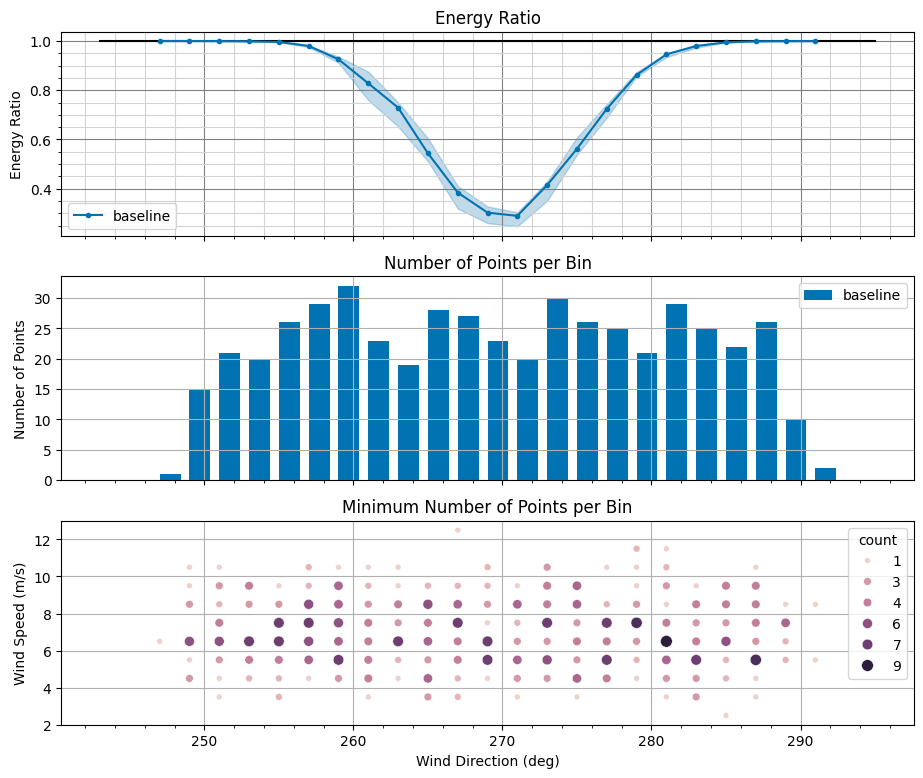

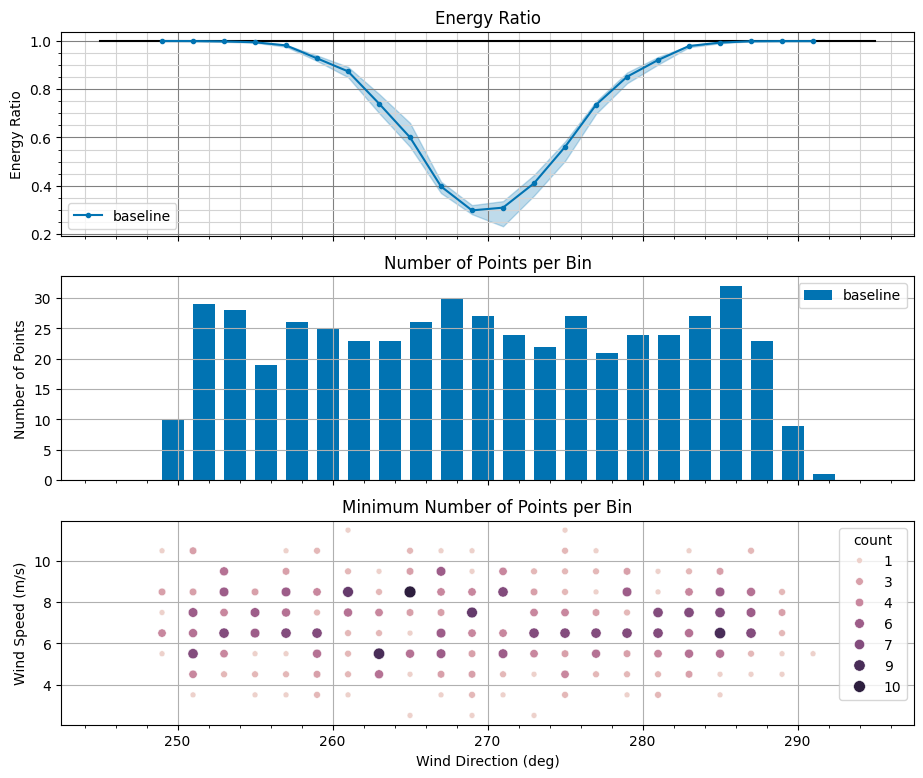

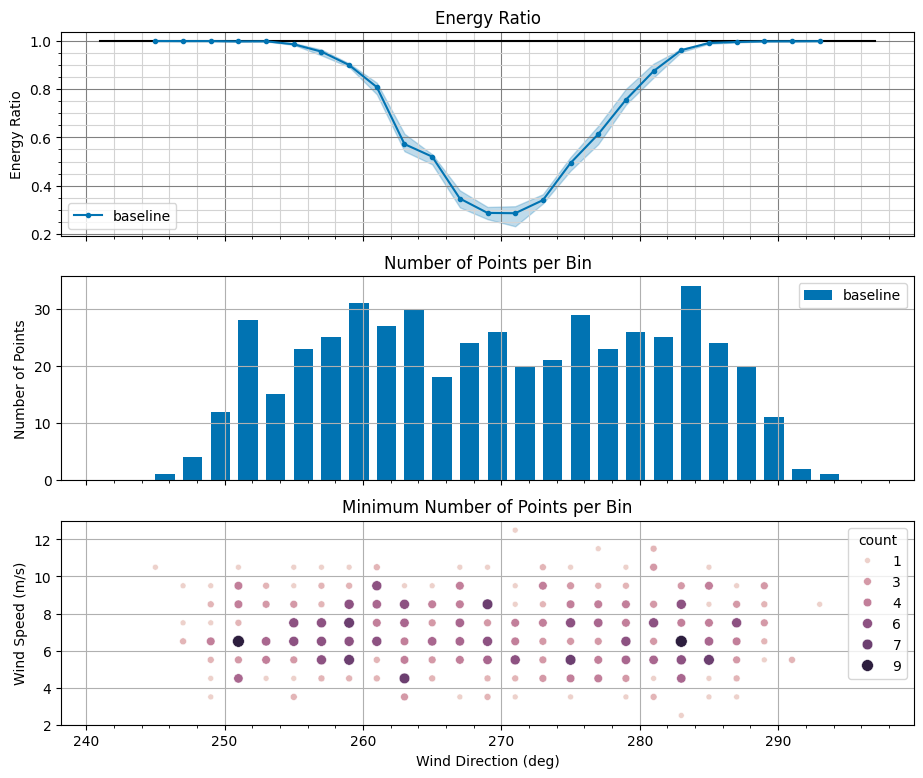

# Calculate and plot the energy ratio of turbine 2 with respect to
# turbine 0, using turbine 0's measurements of wind speed and wind direction
er_out = erp.compute_energy_ratio(
a_in, test_turbines=[2], ref_turbines=[0], ws_turbines=[0], wd_turbines=[0], N=50
)
er_out.plot_energy_ratios()
array([<Axes: title={'center': 'Energy Ratio'}, ylabel='Energy Ratio'>,
<Axes: title={'center': 'Number of Points per Bin'}, ylabel='Number of Points'>,
<Axes: title={'center': 'Minimum Number of Points per Bin'}, xlabel='Wind Direction (deg)', ylabel='Wind Speed (m/s)'>],
dtype=object)

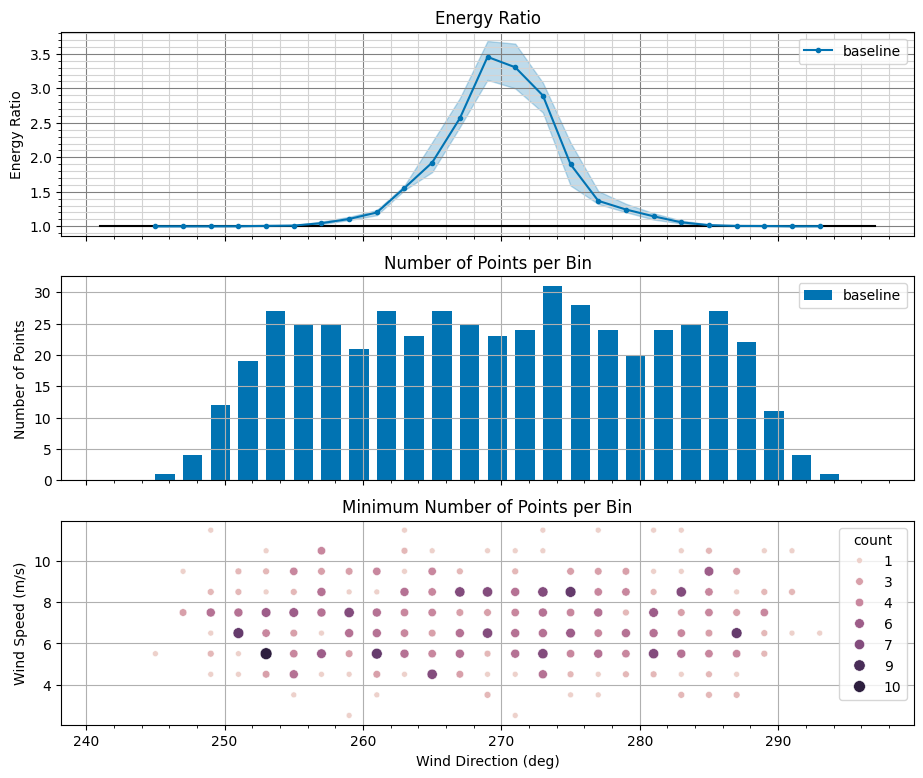

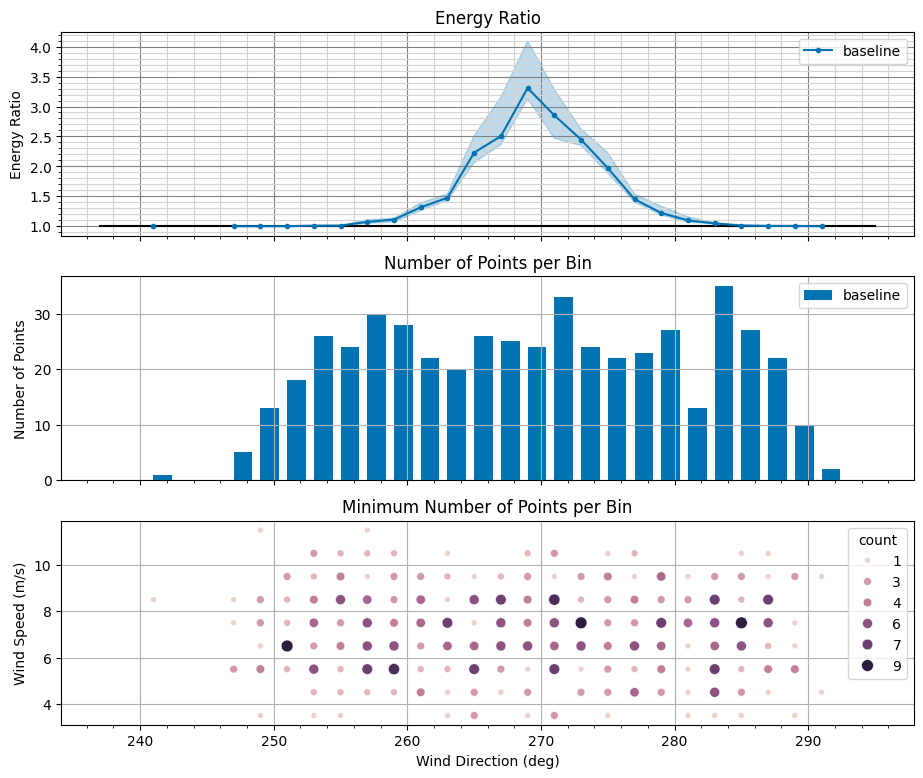

# Reverse the above calculation showing the energy ratio of T0 / T2,
# letting T1 supply wind speed and direction
er_out = erp.compute_energy_ratio(
a_in, test_turbines=[0], ref_turbines=[2], ws_turbines=[1], wd_turbines=[1], N=50
)
er_out.plot_energy_ratios()
array([<Axes: title={'center': 'Energy Ratio'}, ylabel='Energy Ratio'>,
<Axes: title={'center': 'Number of Points per Bin'}, ylabel='Number of Points'>,
<Axes: title={'center': 'Minimum Number of Points per Bin'}, xlabel='Wind Direction (deg)', ylabel='Wind Speed (m/s)'>],
dtype=object)

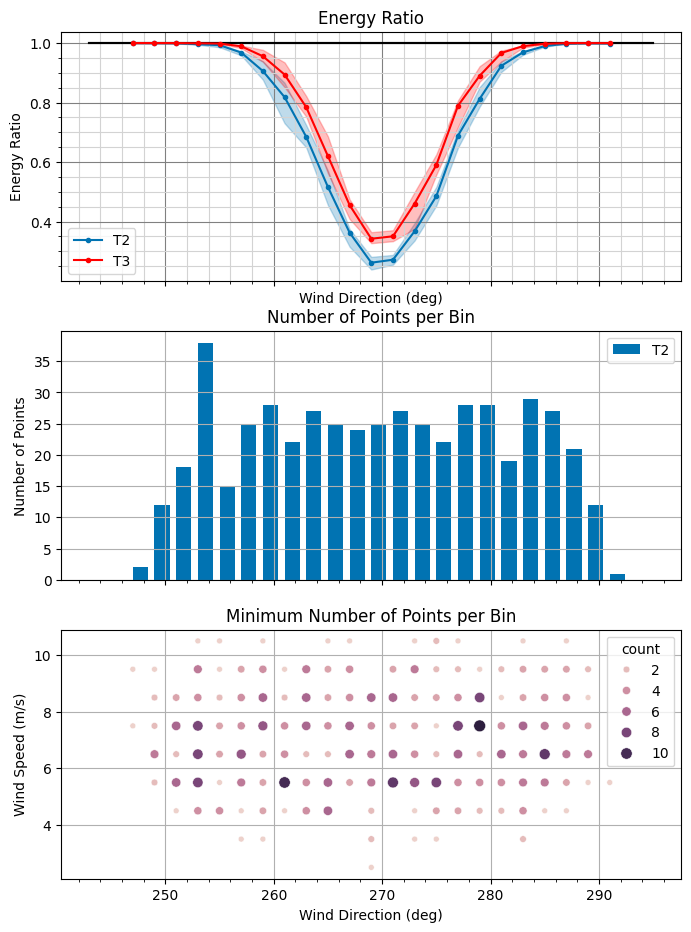

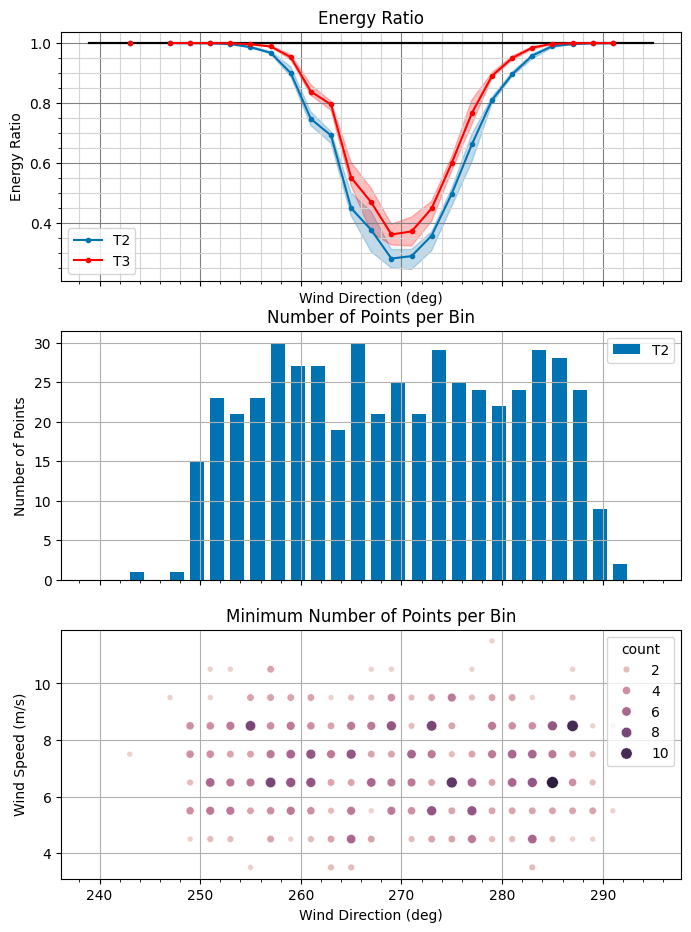

# Overplot the energy ratios of turbine 2 and 3, with respect to the averages of turbines 0 and 1
er_out_2 = erp.compute_energy_ratio(
a_in, test_turbines=[2], ref_turbines=[0, 1], ws_turbines=[0, 1], wd_turbines=[0, 1], N=50
)
er_out_3 = erp.compute_energy_ratio(
a_in, test_turbines=[3], ref_turbines=[0, 1], ws_turbines=[0, 1], wd_turbines=[0, 1], N=50
)
fig, axarr = plt.subplots(3, 1, sharex=True, figsize=(8, 11))
er_out_2.plot_energy_ratios(axarr=axarr, labels="T2")
er_out_3.plot_energy_ratios(
axarr=axarr[0],
show_wind_direction_distribution=False,
show_wind_speed_distribution=False,
labels="T3",
color_dict={"T3": "r"},
)
<Axes: title={'center': 'Energy Ratio'}, xlabel='Wind Direction (deg)', ylabel='Energy Ratio'>
Illustrating pre-computing reference wind speed, direction and power#
# Use the FLASC function for defining wind speed and direction via upstream turbines
df = dfm.set_wd_by_all_turbines(df)
df = dfm.set_ws_by_turbines(df, [0.1])
df = dfm.set_pow_ref_by_turbines(df, [0.1])
df.head()
FlascDataFrame in user (wide) format
| pow_000 | pow_001 | pow_002 | pow_003 | ws_000 | ws_001 | wd_000 | wd_001 | wd_002 | wd_003 | wd | ws | pow_ref | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 400.180232 | 400.180232 | 400.053966 | 400.171201 | 6.398087 | 5.347404 | 246.578415 | 249.616188 | 246.792455 | 250.477679 | 248.366162 | 6.398087 | 400.180232 |
| 1 | 400.180232 | 400.180232 | 400.053966 | 400.171201 | 4.924014 | 4.227719 | 250.789450 | 254.459099 | 251.994894 | 250.212121 | 251.863742 | 4.924014 | 400.180232 |
| 2 | 400.180232 | 400.180232 | 400.053966 | 400.171201 | 5.432284 | 7.136335 | 251.320316 | 248.065936 | 249.199280 | 250.687944 | 249.818389 | 5.432284 | 400.180232 |
| 3 | 400.180232 | 400.180232 | 400.053966 | 400.171201 | 6.547193 | 4.280995 | 251.712198 | 249.904597 | 250.329453 | 251.867612 | 250.953467 | 6.547193 | 400.180232 |
| 4 | 400.180232 | 400.180232 | 400.053966 | 400.171201 | 3.919828 | 4.409893 | 250.747811 | 253.526250 | 249.161604 | 248.179465 | 250.403559 | 3.919828 | 400.180232 |

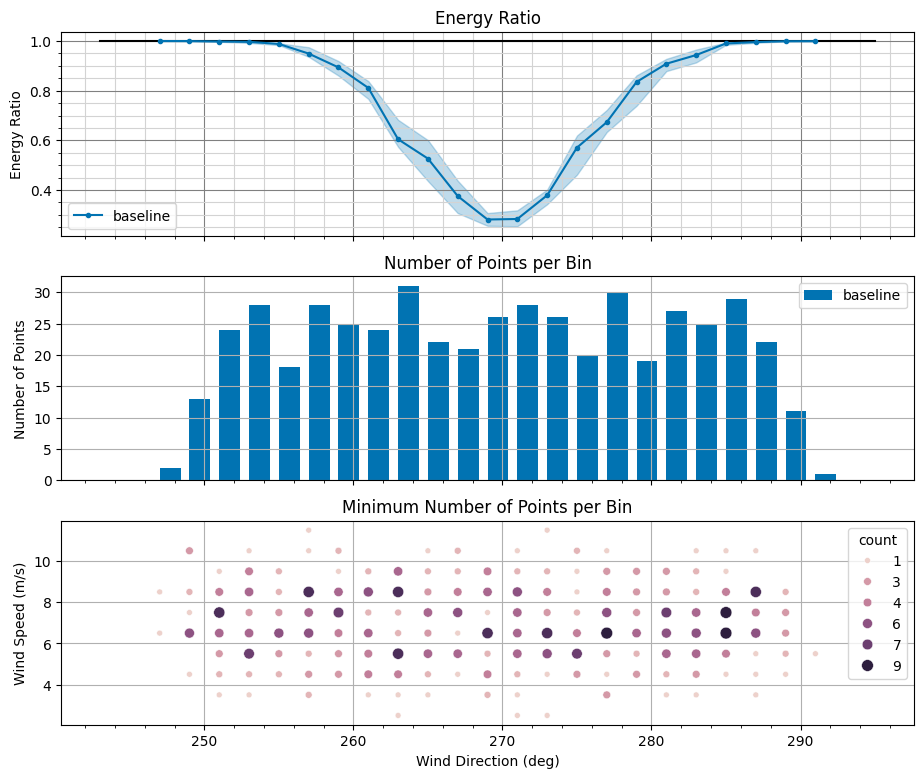

# Now use the predefined values in the calculation of the average of turbines 2 and 3
a_in = AnalysisInput([df], ["baseline"], num_blocks=10)
er_out = erp.compute_energy_ratio(
a_in,
test_turbines=[2, 3],
use_predefined_ref=True,
use_predefined_wd=True,
use_predefined_ws=True,
N=50,
)
er_out.plot_energy_ratios()
array([<Axes: title={'center': 'Energy Ratio'}, ylabel='Energy Ratio'>,
<Axes: title={'center': 'Number of Points per Bin'}, ylabel='Number of Points'>,
<Axes: title={'center': 'Minimum Number of Points per Bin'}, xlabel='Wind Direction (deg)', ylabel='Wind Speed (m/s)'>],
dtype=object)
