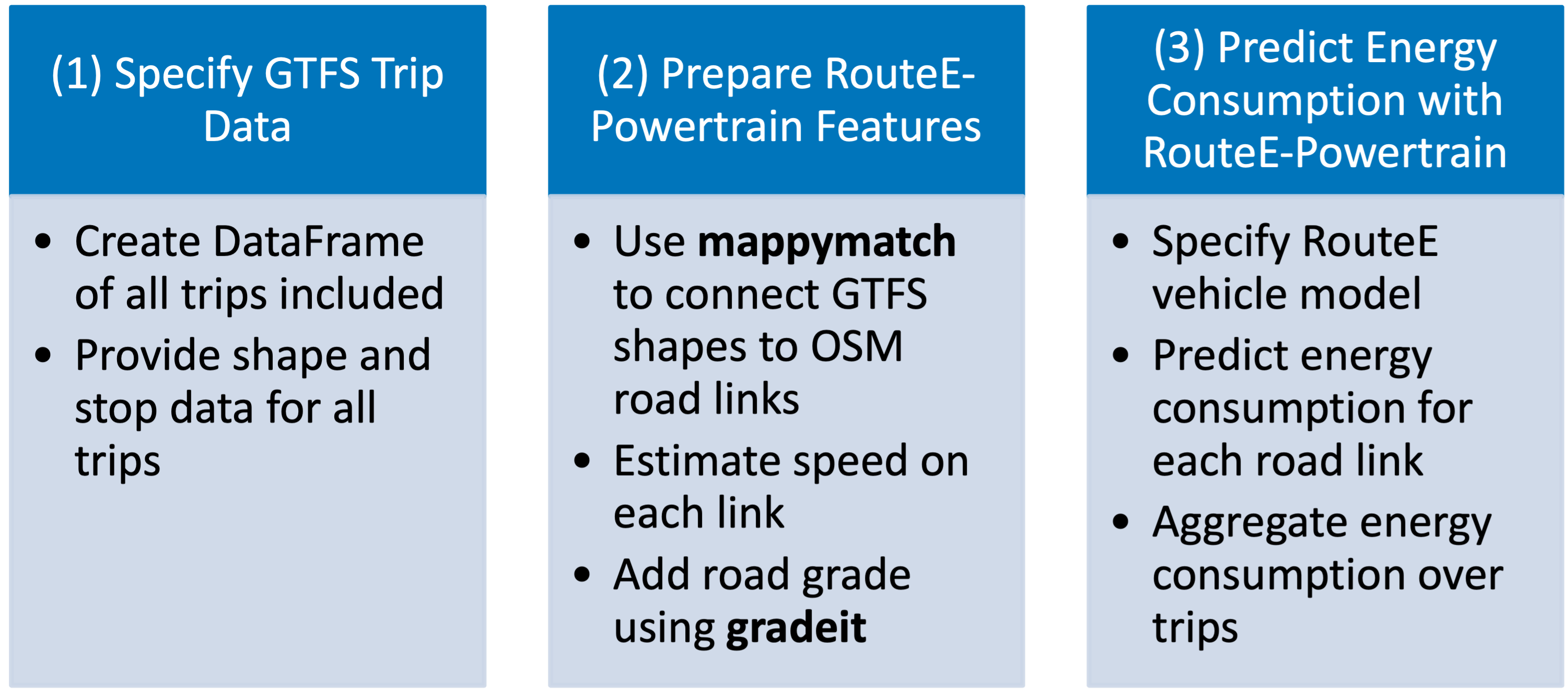

RouteE-Transit builds on RouteE-Powertrain to predict the energy consumption of bus trips given a static GTFS feed. Its key role is to convert GTFS features (such as trip and shape data) into RouteE features (such as vehicle speed, road grade, and distance along road links), so that a RouteE-Powertrain model can be used to predict energy consumption. The full prediction pipeline is summarized by the following figure:

Prediction Pipeline Overview

RouteE-Transit moves from static GTFS files to energy predictions in three steps:

1) Specify GTFS Trip Data#

First, users need to specify the scope of predictions by supplying data from a static GTFS feed. See [](data:gtfs-reqs) for details on what GTFS data must be available. RouteE-Transit needs a set of trips along with their shape traces, stop locations, and stop times in order to proce estimated distance, road grade, and speed for RouteE-Powertrain models.

Users can supply an entire GTFS feed as input or filter down trips (e.g., only trips on a certain day or serving a certain route).

2) Prepare RouteE-Powertrain Features#

Next, RouteE-Transit transforms the input GTFS data into link-level features on the road network so a RouteE-Powertrain model can be applied. The first step in this process is to upsample the shape traces from shapes.txt to approximately 1 Hz resolution for better map matching accuracy, and then match the shapes to OpenStreetMap road links using NREL's mappymatch package.

The map-matched shapes are then used to calculate link distances and NREL's gradeit package appends road grade information to each link based on USGS National Map elevation data.

Finally, the estimated distances are used along with the time intervals between stops fromstop_times.txt to estimate bus average speed along each road link.

3) Predict Energy Consumption with RouteE-Powertrain#

In the last step, a trained RouteE-Powertrain model is run to predict energy consumption for each trip. RouteE-Powertrain version 1.3.2 introduced two initial transit bus models (Transit_Bus_Diesel and Transit_Bus_Battery_Electric) and additional models for different bus styles and manufacturers will be rolled out over time.

Using the GTFSEnergyPredictor Class#

RouteE-Transit provides an object-oriented interface through the GTFSEnergyPredictor class that simplifies the complete workflow:

from routee.transit import GTFSEnergyPredictor

# Initialize predictor
predictor = GTFSEnergyPredictor(
    gtfs_path="path/to/gtfs",
    # depot_path is optional - defaults to NTD depot locations
)

# Option 1: Use the convenience method (recommended)
trip_results = predictor.run(
    vehicle_models="Transit_Bus_Battery_Electric",
    date="2023/08/02",
    routes=["205"],
    add_hvac=True,
)

# Option 2: Step-by-step processing for more control
predictor.load_gtfs_data()
predictor.filter_trips(date="2023/08/02", routes=["205"])
predictor.add_mid_block_deadhead()  # Between-trip deadhead
predictor.add_depot_deadhead()      # To/from depot (uses NTD locations)
predictor.match_shapes_to_network()
predictor.add_road_grade()
predictor.predict_energy(vehicle_models=["Transit_Bus_Battery_Electric"], add_hvac=True)

Assumptions and Limitations#

  • HVAC Energy: Weather impacts are modeled through seasonal HVAC energy consumption (winter and summer) based on ambient temperature data from TMY3 files. Users can enable this with the add_hvac=True parameter.

  • Deadhead Trips: Both mid-block deadhead trips (between consecutive revenue trips) and depot deadhead trips (pull-out/pull-in) can be included in the analysis using the add_mid_block_deadhead() and add_depot_deadhead() methods, or by setting the corresponding parameters to True in the run() method.

  • Depot Locations: By default, depot locations come from the National Transit Database's "Public Transit Facilities and Stations - 2023" dataset (https://data.transportation.gov/stories/s/gd62-jzra). Users can provide custom depot locations by specifying depot_path when initializing the predictor.

  • Network Data: By default, OpenStreetMap is used for road network matching. The class is designed to be extended for use with proprietary network data (e.g., TomTom, HERE) by subclassing and overriding the _match_shapes_to_network() method.
