Temperature Models Example#

This example demonstrates how to use models with temperature as a feature in the Routee Powertrain library.

import routee.powertrain as pt
import pandas as pd
import matplotlib.pyplot as plt

To demonstrate the use of temperature models, we will load a standard Tesla Model 3 RWD model (without temperature as a feature) and two temperature models (steady-state and transient) for the same vehicle. We will then predict energy consumption over a sample route at different ambient temperatures (72°F and 32°F) and compare the results.

It's important to understand the distinction between steady-state and transient temperature models:

Steady-State Temperature Models: These models assume that the vehicle's thermal conditions have stabilized to a constant state. They are typically used for longer trips where the vehicle has had sufficient time for the control systems to have stabilized the thermal environment. In this example, we will use the steady-state model for the portion of the trip after the first 5 minutes at 32°F.
Transient Temperature Models: These models account for the period when the vehicle is still adjusting to the ambient temperature. For example, when a vehicle starts a trip in cold weather and has been sitting outside, it takes some time for the battery and cabin to warm up.

tesla = pt.load_model("tesla/model_3_rwd/2022/rf_c3326385/v1")
tesla_with_temp_steady = pt.load_model(
    "tesla/model_3_rwd/2022/rf_steady_thermal_ab1db342/v1"
)
tesla_with_temp_transient = pt.load_model(
    "tesla/model_3_rwd/2022/rf_transient_thermal_ab1db342/v1"
)

/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

---------------------------------------------------------------------------
HTTPError                                 Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/utils/_http.py:403, in hf_raise_for_status(response, endpoint_name)
try:
--> 403     response.raise_for_status()
except HTTPError as e:

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/requests/models.py:1167, in Response.raise_for_status(self)
if http_error_msg:
-> 1167     raise HTTPError(http_error_msg, response=self)

HTTPError: 404 Client Error: Not Found for url: https://huggingface.co/NatLabRockies/routee-powertrain-model-library/resolve/main/v2/tesla/model_3_rwd/2022/rf_c3326385/v1/metadata.json

The above exception was the direct cause of the following exception:

EntryNotFoundError                        Traceback (most recent call last)
Cell In[2], line 1
----> 1 tesla = pt.load_model("tesla/model_3_rwd/2022/rf_c3326385/v1")
tesla_with_temp_steady = pt.load_model(
   "tesla/model_3_rwd/2022/rf_steady_thermal_ab1db342/v1"
)
tesla_with_temp_transient = pt.load_model(
   "tesla/model_3_rwd/2022/rf_transient_thermal_ab1db342/v1"
)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/routee/powertrain/io/load.py:272, in load_model(name_or_path, registry)
if isinstance(name_or_path, (str, Path)):
   mid = _resolve_load_target(str(name_or_path), registry)
--> 272     return registry.load(mid)
raise ValueError(
   f"Could not load model: {name_or_path}. "
   "Provide a valid local file/directory or a valid ModelId/string with a registry."
)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/routee/powertrain/registry/hf.py:230, in HFRegistry.load(self, model_id)
# Fetch metadata to learn the model filename
meta_path = f"{dir_path}/{METADATA_FILENAME}"
--> 230 meta_bytes = self._fetch_bytes(meta_path)
metadata_dict = json.loads(meta_bytes)
model_filename = _model_filename(metadata_dict)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/routee/powertrain/registry/hf.py:123, in HFRegistry._fetch_bytes(self, path)
"""Download one file from the repository and return its bytes.

The file is fetched into the local HuggingFace cache, so repeat calls
for the same revision do not re-download.
"""
client = self._get_client()
--> 123 local_path = client.hf_hub_download(
   repo_id=self.repo_id,
   filename=path,
   repo_type=self.repo_type,
   revision=self.revision,
)
return Path(local_path).read_bytes()

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/utils/_validators.py:114, in validate_hf_hub_args.<locals>._inner_fn(*args, **kwargs)
if check_use_auth_token:
   kwargs = smoothly_deprecate_use_auth_token(fn_name=fn.__name__, has_token=has_token, kwargs=kwargs)
--> 114 return fn(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/hf_api.py:5467, in HfApi.hf_hub_download(self, repo_id, filename, subfolder, repo_type, revision, cache_dir, local_dir, force_download, proxies, etag_timeout, token, local_files_only, resume_download, force_filename, local_dir_use_symlinks)
if token is None:
   # Cannot do `token = token or self.token` as token can be `False`.
   token = self.token
-> 5467 return hf_hub_download(
   repo_id=repo_id,
   filename=filename,
   subfolder=subfolder,
   repo_type=repo_type,
   revision=revision,
   endpoint=self.endpoint,
   library_name=self.library_name,
   library_version=self.library_version,
   cache_dir=cache_dir,
   local_dir=local_dir,
   local_dir_use_symlinks=local_dir_use_symlinks,
   user_agent=self.user_agent,
   force_download=force_download,
   force_filename=force_filename,
   proxies=proxies,
   etag_timeout=etag_timeout,
   resume_download=resume_download,
   token=token,
   headers=self.headers,
   local_files_only=local_files_only,
)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/utils/_validators.py:114, in validate_hf_hub_args.<locals>._inner_fn(*args, **kwargs)
if check_use_auth_token:
   kwargs = smoothly_deprecate_use_auth_token(fn_name=fn.__name__, has_token=has_token, kwargs=kwargs)
--> 114 return fn(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:1014, in hf_hub_download(repo_id, filename, subfolder, repo_type, revision, library_name, library_version, cache_dir, local_dir, user_agent, force_download, proxies, etag_timeout, token, local_files_only, headers, endpoint, resume_download, force_filename, local_dir_use_symlinks)
   return _hf_hub_download_to_local_dir(
       # Destination
       local_dir=local_dir,
   (...)
       local_files_only=local_files_only,
   )
else:
-> 1014     return _hf_hub_download_to_cache_dir(
       # Destination
       cache_dir=cache_dir,
       # File info
       repo_id=repo_id,
       filename=filename,
       repo_type=repo_type,
       revision=revision,
       # HTTP info
       endpoint=endpoint,
       etag_timeout=etag_timeout,
       headers=hf_headers,
       proxies=proxies,
       token=token,
       # Additional options
       local_files_only=local_files_only,
       force_download=force_download,
   )

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:1077, in _hf_hub_download_to_cache_dir(cache_dir, repo_id, filename, repo_type, revision, endpoint, etag_timeout, headers, proxies, token, local_files_only, force_download)
       return pointer_path
# Try to get metadata (etag, commit_hash, url, size) from the server.
# If we can't, a HEAD request error is returned.
-> 1077 (url_to_download, etag, commit_hash, expected_size, xet_file_data, head_call_error) = _get_metadata_or_catch_error(
   repo_id=repo_id,
   filename=filename,
   repo_type=repo_type,
   revision=revision,
   endpoint=endpoint,
   proxies=proxies,
   etag_timeout=etag_timeout,
   headers=headers,
   token=token,
   local_files_only=local_files_only,
   storage_folder=storage_folder,
   relative_filename=relative_filename,
)
# etag can be None for several reasons:
# 1. we passed local_files_only.
# 2. we don't have a connection
   (...)
# If the specified revision is a commit hash, look inside "snapshots".
# If the specified revision is a branch or tag, look inside "refs".
if head_call_error is not None:
   # Couldn't make a HEAD call => let's try to find a local file

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:1550, in _get_metadata_or_catch_error(repo_id, filename, repo_type, revision, endpoint, proxies, etag_timeout, headers, token, local_files_only, relative_filename, storage_folder)
try:
   try:
-> 1550         metadata = get_hf_file_metadata(
           url=url, proxies=proxies, timeout=etag_timeout, headers=headers, token=token, endpoint=endpoint
       )
   except EntryNotFoundError as http_error:
       if storage_folder is not None and relative_filename is not None:
           # Cache the non-existence of the file

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/utils/_validators.py:114, in validate_hf_hub_args.<locals>._inner_fn(*args, **kwargs)
if check_use_auth_token:
   kwargs = smoothly_deprecate_use_auth_token(fn_name=fn.__name__, has_token=has_token, kwargs=kwargs)
--> 114 return fn(*args, **kwargs)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:1467, in get_hf_file_metadata(url, token, proxies, timeout, library_name, library_version, user_agent, headers, endpoint)
hf_headers["Accept-Encoding"] = "identity"  # prevent any compression => we want to know the real size of the file
# Retrieve metadata
-> 1467 r = _request_wrapper(
   method="HEAD",
   url=url,
   headers=hf_headers,
   allow_redirects=False,
   follow_relative_redirects=True,
   proxies=proxies,
   timeout=timeout,
)
hf_raise_for_status(r)
# Return

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:283, in _request_wrapper(method, url, follow_relative_redirects, **params)
# Recursively follow relative redirects
if follow_relative_redirects:
--> 283     response = _request_wrapper(
       method=method,
       url=url,
       follow_relative_redirects=False,
       **params,
   )
   # If redirection, we redirect only relative paths.
   # This is useful in case of a renamed repository.
   if 300 <= response.status_code <= 399:

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/file_download.py:307, in _request_wrapper(method, url, follow_relative_redirects, **params)
# Perform request and return if status_code is not in the retry list.
response = http_backoff(method=method, url=url, **params)
--> 307 hf_raise_for_status(response)
return response

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/huggingface_hub/utils/_http.py:414, in hf_raise_for_status(response, endpoint_name)
elif error_code == "EntryNotFound":
   message = f"{response.status_code} Client Error." + "\n\n" + f"Entry Not Found for url: {response.url}."
--> 414     raise _format(EntryNotFoundError, message, response) from e
elif error_code == "GatedRepo":
   message = (
       f"{response.status_code} Client Error." + "\n\n" + f"Cannot access gated repo for url {response.url}."
   )

EntryNotFoundError: 404 Client Error. (Request ID: Root=1-6a6d0a47-34b9fea614ccac8641994961;a9fe20df-06ce-4a12-b969-b784cac7c073)

Entry Not Found for url: https://huggingface.co/NatLabRockies/routee-powertrain-model-library/resolve/main/v2/tesla/model_3_rwd/2022/rf_c3326385/v1/metadata.json.

Load a sample route and prepare it for prediction.

sample_route = pt.load_sample_route()
sample_route["time_minutes"] = (
    sample_route["distance"] / sample_route["speed_mph"]
) * 60
sample_route["cummulative_time_minutes"] = sample_route["time_minutes"].cumsum()
sample_route["cummulative_distance"] = sample_route["distance"].cumsum()

Set the ambient temperature for the route.

sample_route_72F = sample_route.copy()
sample_route_72F["ambient_temp_f"] = 72

sample_route_32F = sample_route.copy()
sample_route_32F["ambient_temp_f"] = 32

For the 32°F route, we will use the transient model for the first 5 minutes and the steady-state model for the remainder of the trip.

sample_route_32F_transient = sample_route_32F[
    sample_route_32F["cummulative_time_minutes"] <= 5
]
sample_route_32F_steady = sample_route_32F[
    sample_route_32F["cummulative_time_minutes"] > 5
]

Predict energy consumption using the different models and ambient temperatures. Each model uses its own configured feature set, so we just need to make sure the input DataFrame contains the columns the model expects.

energy = tesla.predict(sample_route)
energy_with_temp_72F = tesla_with_temp_steady.predict(sample_route_72F)
energy_with_temp_32F_transient = tesla_with_temp_transient.predict(
    sample_route_32F_transient
)
energy_with_temp_32F_steady = tesla_with_temp_steady.predict(sample_route_32F_steady)
energy_with_temp_32F = pd.concat(
    [energy_with_temp_32F_transient, energy_with_temp_32F_steady]
)

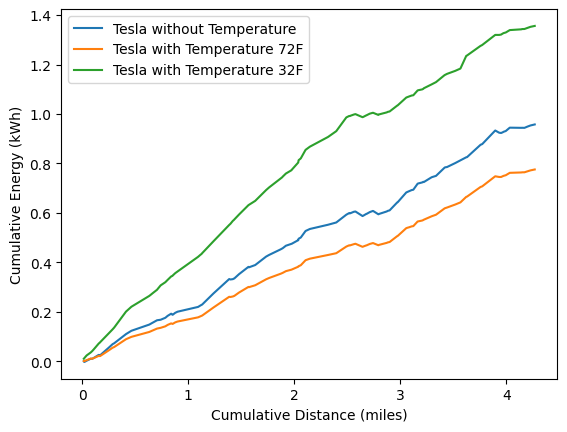

Now, we can compare the energy consumption results.

energy["cummulative_energy_kwh"] = energy["kwh"].cumsum()
energy_with_temp_72F["cummulative_energy_kwh"] = energy_with_temp_72F["kwh"].cumsum()
energy_with_temp_32F["cummulative_energy_kwh"] = energy_with_temp_32F["kwh"].cumsum()
plt.plot(
    sample_route["cummulative_distance"],
    energy["cummulative_energy_kwh"],
    label="Tesla without Temperature",
)
plt.plot(
    sample_route["cummulative_distance"],
    energy_with_temp_72F["cummulative_energy_kwh"],
    label="Tesla with Temperature 72F",
)
plt.plot(
    sample_route["cummulative_distance"],
    energy_with_temp_32F["cummulative_energy_kwh"],
    label="Tesla with Temperature 32F",
)
plt.xlabel("Cumulative Distance (miles)")
plt.ylabel("Cumulative Energy (kWh)")
plt.legend()

Notice how the energy consumption for the 32°F route is higher than the other two scenarios, reflecting the increased energy demand in colder temperatures.

Something else to note is that the model that doesn't consider temperature explicitly includes a "real world correction factor" to account for things like temperature on average. This explains why the energy consumption for the 72°F route is slightly lower than the other two scenarios since the model without temperature adjustment is effectively averaging out the impact of temperature. The 72°F condition would be considered the "ideal" case since the vehicle does not have to expand any extra effort to maintain the cabin temperature.

Multi-Vehicle Comparison#

Now let's compare the Tesla Model 3 with other electric vehicles to see how different EVs perform under various temperature conditions. We'll load the Nissan Leaf and Chevrolet Bolt models and compare their energy consumption across different temperatures.

nissan_leaf_steady = pt.load_model(
    "nissan/leaf_30_kwh/2016/rf_steady_thermal_ab1db342/v1"
)
nissan_leaf_transient = pt.load_model(
    "nissan/leaf_30_kwh/2016/rf_transient_thermal_ab1db342/v1"
)

chevy_bolt_steady = pt.load_model(
    "chevrolet/bolt_ev/2020/rf_steady_thermal_ab1db342/v1"
)
chevy_bolt_transient = pt.load_model(
    "chevrolet/bolt_ev/2020/rf_transient_thermal_ab1db342/v1"
)

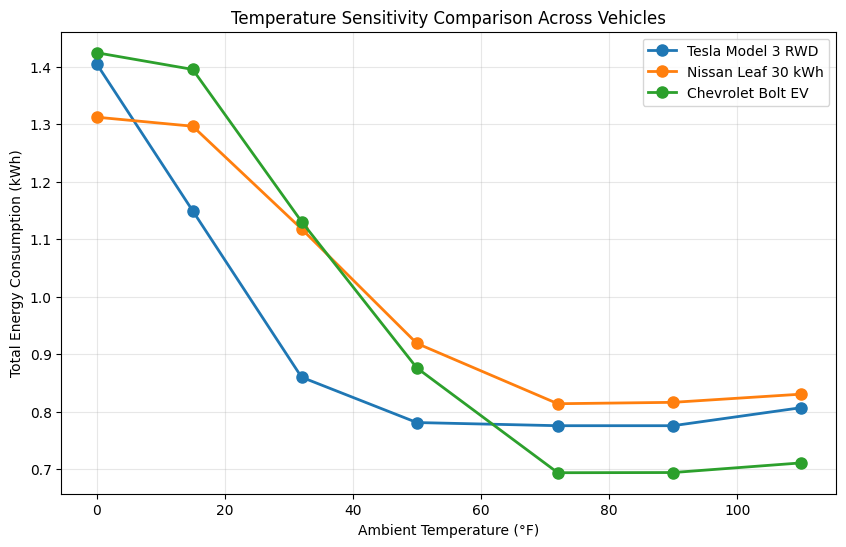

Temperature Sensitivity Comparison#

Let's compare how each vehicle's energy consumption changes across a range of temperatures (0°F, 15°F, 32°F, 50°F, 72°F, 90°F, 110°F). We'll use steady-state models for this comparison.

# Predict energy for all vehicles at different temperatures
temperatures = [0, 15, 32, 50, 72, 90, 110]
vehicles_data = {
    "Tesla Model 3 RWD": tesla_with_temp_steady,
    "Nissan Leaf 30 kWh": nissan_leaf_steady,
    "Chevrolet Bolt EV": chevy_bolt_steady,
}

total_energy_by_temp = {vehicle: [] for vehicle in vehicles_data.keys()}

for temp in temperatures:
    route_temp = sample_route.copy()
    route_temp["ambient_temp_f"] = temp

    for vehicle_name, model in vehicles_data.items():
        energy_pred = model.predict(route_temp)
        total_energy_by_temp[vehicle_name].append(energy_pred["kwh"].sum())

# Create temperature sensitivity comparison plot
plt.figure(figsize=(10, 6))
for vehicle_name, energies in total_energy_by_temp.items():
    plt.plot(
        temperatures,
        energies,
        marker="o",
        linewidth=2,
        markersize=8,
        label=vehicle_name,
    )

plt.xlabel("Ambient Temperature (°F)")
plt.ylabel("Total Energy Consumption (kWh)")
plt.title("Temperature Sensitivity Comparison Across Vehicles")
plt.legend()
plt.grid(True, alpha=0.3)

Temperature Models Example

Contents

Temperature Models Example#

Multi-Vehicle Comparison#

Temperature Sensitivity Comparison#
