What is RouteE?

RouteE-Powertrain is a Python package that allows users to work with a set of pre-trained mesoscopic vehicle energy prediction models for a varity of vehicle types. Additionally, users can train their own models if "ground truth" energy consumption and driving data are available. RouteE-Powertrain models predict vehicle energy consumption over links in a road network, so the features considered for prediction often include traffic speeds, road grade, turns, etc. Common applications of RouteE-Powertrain are energy-aware ("eco") routing (like RouteE-Compass), energy accounting in mesoscopic simulations, and range estimation (especially for EVs). The diagrams below illustrate the logic and data flows for training custom RouteE-Powertrain models and performing prediction with previously trained models.

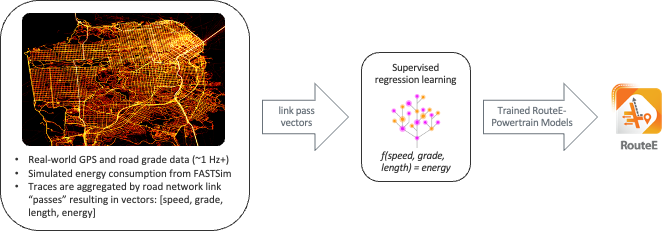

Training

Training new RouteE-Powertrain models requires a set of link aggregate driving data with energy consumption on each link in the road network. Often this data comes from high-frequency GPS or telematics data collected by dedicated loggers or from connected vehicles that are always streaming telematics data. The energy consumption can either be vehicle reported/measured or simulated using a powertrain simulation software like FASTSim.

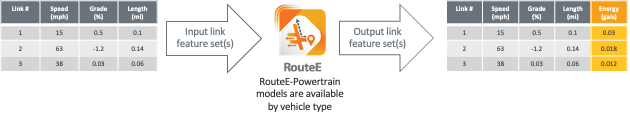

Prediction

In application, trained RouteE-Powertrain models expect link features as inputs and return predicted energy consumption for a particular vehicle over a link with the particular feature set. The RouteE developers maintain a separate repository for previously trained RouteE-Powertrain models, available for prediction "off the shelf". To see which models are available you can use the pt.list_available_models() function:

import routee.powertrain as pt

pt.list_available_models()

This returns a list of ModelId objects. For more detail (including feature names, errors, and powertrain type), use query_available_models:

# Query all available Toyota models
results = pt.query_available_models(make="toyota")

# Query with multiple filters
results = pt.query_available_models(make="chevrolet", model="bolt", year=2017)

To predict with any of these models you can use the pt.load_model() function. Pass the registry path string (or a ModelId object) to load a model:

camry = pt.load_model('toyota/camry_ice/2016/rf_c3326385/v1')
bolt = pt.load_model('chevrolet/bolt_bev/2017/rf_c3326385/v1')

Model Registry

Model discovery and retrieval go through a ModelRegistry abstraction. By default, models are fetched from a public HuggingFace Hub repository — anonymously, with downloads cached under ~/.cache/huggingface so loading the same model twice only hits the network once. Set the ROUTEE_REGISTRY_BACKEND environment variable to read a local directory tree instead, or to fall back to the S3 bucket (pip install "routee.powertrain[s3]", since boto3 is no longer installed by default).

Setting ROUTEE_HF_REVISION to a commit sha pins the entire library — every model and the index — to an exact state, which is the simplest way to make a downstream analysis reproducible.

A ModelId is structured as <make>/<vehicle_slug>/<year>/<config_slug>/v<N>. Both slugs are derived from the model's metadata: the vehicle_slug is the model name plus the coarse powertrain family (e.g. camry_ice, bolt_bev, volt_phev — both PHEV operating modes collapse to one phev family), and the config_slug disambiguates multiple trained configurations for the same vehicle as <architecture>_<variant?>_<feature_hash> (e.g. rf_c3326385, ngb_stochastic_96224f1f) — so different architectures, feature sets, or variant labels each get a distinct slug automatically. Omit the trailing v<N> to load the latest version. The version-less part (<make>/<vehicle_slug>/<year>/<config_slug>) is a model's ModelKey, exposed on any loaded or trained model as model.key.

For a step-by-step walkthrough of training a new model and writing it into the registry layout, see Publishing a Model.

Variable	Default	Meaning
ROUTEE_REGISTRY_BACKEND	hf	Backend to use: hf, s3, or local
ROUTEE_HF_REPO_ID	NatLabRockies/routee-powertrain-model-library	HuggingFace repo holding the model library
ROUTEE_HF_REPO_TYPE	model	HuggingFace repo type: model or dataset
ROUTEE_HF_REVISION	(default branch)	Branch, tag, or commit sha to read
ROUTEE_HF_TOKEN	(anonymous)	Hub access token; unset reads public repos
ROUTEE_S3_BUCKET	routeecore-bucket	S3 bucket name
ROUTEE_S3_REGION	us-west-2	AWS region
ROUTEE_S3_ROOT_PREFIX	routee-powertrain-model-library	S3 key prefix
ROUTEE_SCHEMA_VERSION	v2	On-disk schema version
ROUTEE_LOCAL_REGISTRY_ROOT	(bundled registry)	Filesystem root for the local backend

query_available_models supports fuzzy string matching by default (fuzzy=True, fuzzy_threshold=80) and accepts the additional filters powertrain_type, fuel_type, drivetrain, engine, trim, feature_names, and custom_filters. Pass version_strategy="all" to see every version of every model instead of just the latest.
