This demo simulates a conventional vehicle over a drive cycle with and without engine stop/start, which turns the engine off while the vehicle is stopped, and compares the resulting fuel economy. It then converts the vehicle to a micro hybrid electric vehicle (uHEV) with a small battery and electric machine that supplies auxiliary loads when feasible, including while the engine is off.
import os
import sys
from pathlib import Path
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
from matplotlib.axes import Axes
from matplotlib.figure import Figure
sys.path.insert(0, str(next(p / "demo_scripts" for p in (Path.cwd(), *Path.cwd().parents) if (p / "demo_scripts").is_dir())))
import fastsim as fsim
from plot_utils import get_paired_cycler, get_uni_cyclersns.set_theme()
# if environment var `SHOW_PLOTS=false` is set, no plots are shown
SHOW_PLOTS = os.environ.get("SHOW_PLOTS", "true").lower() == "true"
# if environment var `SAVE_FIGS=true` is set, save plots
SAVE_FIGS = os.environ.get("SAVE_FIGS", "false").lower() == "true"
METERS_PER_MILE = 1609.34
MJ_PER_GGE = 125.0Setup and Simulation¶
Run the same vehicle and drive cycle twice: first with the default
powertrain controller, then with the stop/start controller enabled via
use_stop_start_controller. The stop/start controller turns the engine
off while the vehicle is stopped, subject to conditions such as a
minimum engine on time and engine warm-up temperature.
# load 2026 Chrysler Pacifica Select
veh = fsim.Vehicle.from_resource("2026_Chrysler_Pacifica_Select.yaml")
veh.set_save_interval(1)
# load cycle from file
cyc = fsim.Cycle.from_resource("udds.csv")
# instantiate `SimDrive` simulation object and run
sd = fsim.SimDrive(veh, cyc)
sd.walk()
df = sd.to_dataframe()# load 2026 Chrysler Pacifica Select with stop/start
veh_ss = fsim.Vehicle.from_resource("2026_Chrysler_Pacifica_Select.yaml")
veh_ss.use_stop_start_controller()
veh_ss.set_save_interval(1)
sd_ss = fsim.SimDrive(veh_ss, cyc)
sd_ss.walk()
df_ss = sd_ss.to_dataframe()Fuel Economy Comparison¶
Compute fuel economy for both runs from cumulative fuel energy and cycle distance, then print the percent reduction in fuel use from stop/start.
cyc_dict = cyc.to_pydict()
distance_m = cyc_dict["dist_meters"][-1]
distance_mi = distance_m / METERS_PER_MILE
fuel_mj = df["veh.pt_type.Conv.fc.history.energy_fuel_joules"][-1] / 1e6
fuel_ss_mj = df_ss["veh.pt_type.Conv.fc.history.energy_fuel_joules"][-1] / 1e6
gge_gal = fuel_mj / MJ_PER_GGE
gge_ss_gal = fuel_ss_mj / MJ_PER_GGE
fuel_economy_mpg = distance_mi / gge_gal
fuel_economy_ss_mpg = distance_mi / gge_ss_gal
percent_reduction = (fuel_mj - fuel_ss_mj) * 100.0 / fuel_mj
print(f"Conventional Vehicle Fuel Economy: {fuel_economy_mpg} mpg")
print(f"Conventional w/ Stop/Start : {fuel_economy_ss_mpg} mpg")
print(f"Stop/Start Reduction in Fuel Usage (Conv): {percent_reduction} %")Conventional Vehicle Fuel Economy: 23.89440188640568 mpg
Conventional w/ Stop/Start : 25.967510082378613 mpg
Stop/Start Reduction in Fuel Usage (Conv): 7.983469302202093 %
Micro Hybrid Conversion¶
The following function converts the conventional vehicle into a micro
hybrid electric vehicle (uHEV): a vehicle with a small battery and
electric machine that support engine stop/start. The conversion keeps
the original fuel converter, fuel storage, and transmission, adds a
battery and a constant-efficiency electric machine, supplies auxiliary
loads from the battery when feasible (AuxOnResPriority), and uses the
hybrid stop/start powertrain controller with optional regenerative
braking. The dictionaries are written out in full to show the fields
available for tweaking.
def conv_to_micro_hybrid(
veh: fsim.Vehicle,
res_eff: float | None = None,
res_capacity_joules: float | None = None,
em_eff: float | None = None,
em_max_pwr_w: float | None = None,
allow_regen: bool = True,
) -> fsim.Vehicle:
"""Build a micro hybrid version of the Chrysler Pacifica Select."""
# veh = fsim.Vehicle.from_resource("2026_Chrysler_Pacifica_Select.yaml")
res_eff = 0.90 if res_eff is None else res_eff
res_capacity_joules = 72_000.0 if res_capacity_joules is None else res_capacity_joules
em_eff = 0.95 if em_eff is None else em_eff
em_max_pwr_w = 5_000.0 if em_max_pwr_w is None else em_max_pwr_w
assert res_capacity_joules > 0.0
assert res_eff > 0.0 and res_eff <= 1.0, "res_eff must be in range (0.0, 1.0]"
assert em_eff > 0.0 and em_eff <= 1.0, "em_eff must be in range (0.0, 1.0]"
veh_dict = veh.to_pydict()
res = {
"thrml": "None",
"mass_kilograms": None,
"specific_energy_joules_per_kilogram": None,
"pwr_out_max_watts": em_max_pwr_w,
"energy_capacity_joules": res_capacity_joules,
"eff_interp": {
"Constant": res_eff,
},
"min_soc": 0.0,
"max_soc": 1.0,
"state": {
"pwr_prop_max_watts": 0.0,
"pwr_regen_max_watts": 0.0,
"pwr_disch_max_watts": 0.0,
"pwr_charge_max_watts": 0.0,
"i": 0,
"soc": 0.5,
"soc_regen_buffer": 1.0,
"soc_disch_buffer": 0.0,
"eff": 0.0,
"soh": 0.0,
"pwr_out_electrical_watts": 0.0,
"pwr_out_prop_watts": 0.0,
"pwr_aux_watts": 0.0,
"pwr_loss_watts": 0.0,
"pwr_out_chemical_watts": 0.0,
"energy_out_electrical_joules": 0.0,
"energy_out_prop_joules": 0.0,
"energy_aux_joules": 0.0,
"energy_loss_joules": 0.0,
"energy_out_chemical_joules": 0.0,
},
"history": {
"pwr_prop_max_watts": [],
"pwr_regen_max_watts": [],
"pwr_disch_max_watts": [],
"pwr_charge_max_watts": [],
"i": [],
"soc": [],
"soc_regen_buffer": [],
"soc_disch_buffer": [],
"eff": [],
"soh": [],
"pwr_out_electrical_watts": [],
"pwr_out_prop_watts": [],
"pwr_aux_watts": [],
"pwr_loss_watts": [],
"pwr_out_chemical_watts": [],
"energy_out_electrical_joules": [],
"energy_out_prop_joules": [],
"energy_aux_joules": [],
"energy_loss_joules": [],
"energy_out_chemical_joules": [],
},
"save_interval": 1,
}
em = {
"eff_interp_achieved": {
"data": {
"grid": [
{
"v": 1,
"dim": [2],
"data": [0.0, 1.0],
},
],
"values": {
"v": 1,
"dim": [2],
"data": [em_eff, em_eff],
},
},
"strategy": "Linear",
"extrapolate": "Error",
},
"eff_interp_at_max_input": {
"data": {
"grid": [
{
"v": 1,
"dim": [2],
"data": [0.0, 1.0],
},
],
"values": {
"v": 1,
"dim": [2],
"data": [em_eff, em_eff],
},
},
"strategy": "Linear",
"extrapolate": "Error",
},
"pwr_out_max_watts": em_max_pwr_w,
"specific_pwr_watts_per_kilogram": None,
"mass_kilograms": None,
"save_interval": 1,
"state": {
"i": 0,
"eff": 0.0,
"pwr_mech_fwd_out_max_watts": 0.0,
"eff_fwd_at_max_input": 0.0,
"pwr_mech_regen_max_watts": 0.0,
"eff_at_max_regen": 0.0,
"pwr_out_req_watts": 0.0,
"energy_out_req_joules": 0.0,
"pwr_elec_prop_in_watts": 0.0,
"energy_elec_prop_in_joules": 0.0,
"pwr_mech_prop_out_watts": 0.0,
"energy_mech_prop_out_joules": 0.0,
"pwr_mech_dyn_brake_watts": 0.0,
"energy_mech_dyn_brake_joules": 0.0,
"pwr_elec_dyn_brake_watts": 0.0,
"energy_elec_dyn_brake_joules": 0.0,
"pwr_loss_watts": 0.0,
"energy_loss_joules": 0.0,
},
"history": {
"i": [],
"eff": [],
"pwr_mech_fwd_out_max_watts": [],
"eff_fwd_at_max_input": [],
"pwr_mech_regen_max_watts": [],
"eff_at_max_regen": [],
"pwr_out_req_watts": [],
"energy_out_req_joules": [],
"pwr_elec_prop_in_watts": [],
"energy_elec_prop_in_joules": [],
"pwr_mech_prop_out_watts": [],
"energy_mech_prop_out_joules": [],
"pwr_mech_dyn_brake_watts": [],
"energy_mech_dyn_brake_joules": [],
"pwr_elec_dyn_brake_watts": [],
"energy_elec_dyn_brake_joules": [],
"pwr_loss_watts": [],
"energy_loss_joules": [],
},
}
pt_cntrl = {
"StopStart": {
"fc_min_time_on_seconds": None,
"soc_fc_forced_on": None,
"frac_of_most_eff_pwr_to_run_fc": None,
"temp_fc_forced_on_kelvin": None,
"temp_fc_allowed_off_kelvin": None,
"time_delay_after_stop_until_fc_can_turn_off_seconds": None,
"em_can_regen": allow_regen,
"save_interval": 1,
"state": {
"i": 0,
"fc_temperature_too_low": False,
"vehicle_not_stopped": False,
"on_time_too_short": False,
"aux_power_demand": False,
"charging_for_low_soc": False,
"time_vehicle_stopped_seconds": 0.0,
"vehicle_not_stopped_long_enough": False,
"has_traction_power_request": False,
},
"history": {
"i": [],
"fc_temperature_too_low": [],
"vehicle_not_stopped": [],
"on_time_too_short": [],
"aux_power_demand": [],
"charging_for_low_soc": [],
"time_vehicle_stopped_seconds": [],
"vehicle_not_stopped_long_enough": [],
"has_traction_power_request": [],
},
},
}
sim_params = {
"res_per_fuel_lim": 0.005,
"soc_balance_iter_err": 5,
"balance_soc": True,
"save_soc_bal_iters": False,
}
# NOTE: The value of 11.9 kW below is the approximate idle fuel consumption of the
# conventional version of the vehicle. In theory, this could be much lower as the
# accessories can be supplied electrically (thus alleviating the need for engine on).
# NOTE: if pwr_idle_fuel_watts is too low or zero, the engine effectively uses DFCO
# behavior where it "shuts off" (i.e., technically on but using no fuel) if no
# tractive effort is demanded.
veh_dict["pt_type"]["Conv"]["fc"]["pwr_idle_fuel_watts"] = 11_900.0
veh_dict["pt_type"] = {
"HEV": {
"res": res,
"fs": veh_dict["pt_type"]["Conv"]["fs"],
"fc": veh_dict["pt_type"]["Conv"]["fc"],
"em": em,
"transmission": veh_dict["pt_type"]["Conv"]["transmission"],
"pt_cntrl": pt_cntrl,
"aux_cntrl": "AuxOnResPriority",
"mass_kilograms": None,
"sim_params": sim_params,
},
}
veh_uhev = fsim.Vehicle.from_pydict(veh_dict)
return veh_uhevveh_uhev = conv_to_micro_hybrid(veh)
sd_uhev = fsim.SimDrive(veh_uhev, cyc)
sd_uhev.walk()
df_uhev = sd_uhev.to_dataframe()# uHEV reduction in fuel usage
fuel_uhev_mj = df_uhev["veh.pt_type.HEV.fc.history.energy_fuel_joules"][-1] / 1e6
gge_uhev_gal = fuel_uhev_mj / MJ_PER_GGE
fuel_economy_uhev_mpg = distance_mi / gge_uhev_gal
percent_reduction = (fuel_mj - fuel_uhev_mj) * 100.0 / fuel_mj
print(f"Conventional Vehicle Fuel Economy: {fuel_economy_mpg} mpg")
print(f"Micro HEV Fuel Economy : {fuel_economy_uhev_mpg} mpg")
print(f"Stop/Start Reduction in Fuel Usage (uHEV): {percent_reduction} %")Conventional Vehicle Fuel Economy: 23.89440188640568 mpg
Micro HEV Fuel Economy : 25.417608925328146 mpg
Stop/Start Reduction in Fuel Usage (uHEV): 5.992723561832026 %
Visualize Results¶

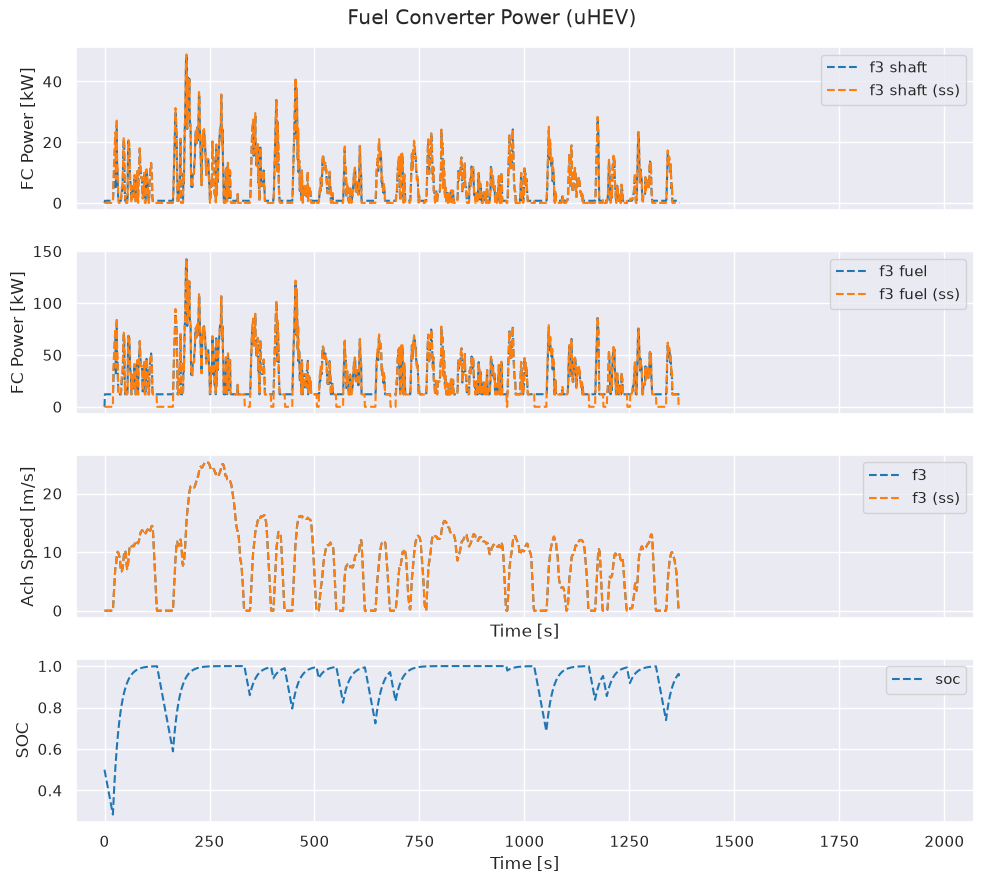

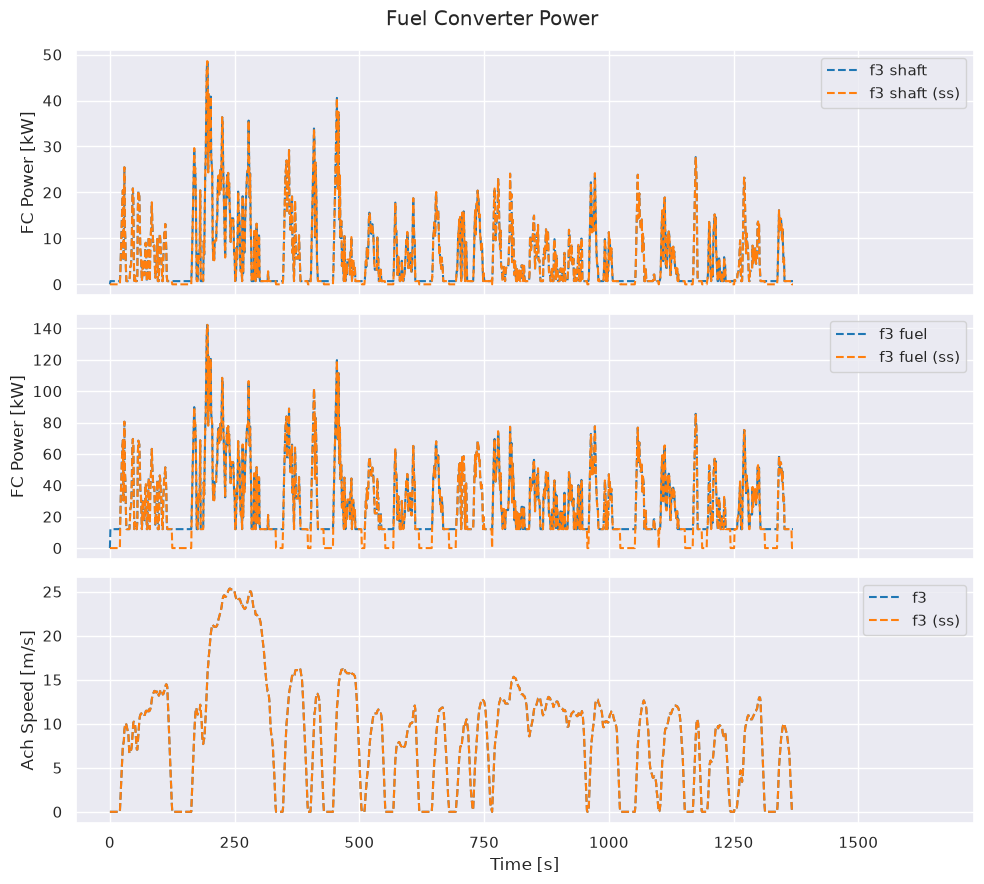

The following plots compare fuel converter behavior between the runs.
def plot_fc_pwr(df: pd.DataFrame, df_ss: pd.DataFrame, is_hev: bool = False) -> tuple[Figure, Axes]:
"""Plot fuel converter powers."""
num_subplots = 4 if is_hev else 3
fig, ax = plt.subplots(num_subplots, 1, sharex=True, figsize=(10, 9))
title_postfix = " (uHEV)" if is_hev else ""
plt.suptitle("Fuel Converter Power" + title_postfix)
tag = "HEV" if is_hev else "Conv"
ax[0].set_prop_cycle(get_paired_cycler())
ax[0].plot(
df["cyc.time_seconds"],
(
df["veh.pt_type.Conv.fc.history.pwr_prop_watts"]
+ df["veh.pt_type.Conv.fc.history.pwr_aux_watts"]
)
/ 1e3,
label="f3 shaft",
)
ax[0].plot(
df_ss["cyc.time_seconds"],
(
df_ss[f"veh.pt_type.{tag}.fc.history.pwr_prop_watts"]
+ df_ss[f"veh.pt_type.{tag}.fc.history.pwr_aux_watts"]
)
/ 1e3,
label="f3 shaft (ss)",
)
ax[0].set_ylabel("FC Power [kW]")
ax[0].legend()
ax[1].set_prop_cycle(get_paired_cycler())
ax[1].plot(
df["cyc.time_seconds"],
df["veh.pt_type.Conv.fc.history.pwr_fuel_watts"] / 1e3,
label="f3 fuel",
)
ax[1].plot(
df_ss["cyc.time_seconds"],
df_ss[f"veh.pt_type.{tag}.fc.history.pwr_fuel_watts"] / 1e3,
label="f3 fuel (ss)",
)
ax[1].set_ylabel("FC Power [kW]")
ax[1].legend()
ax[2].set_prop_cycle(get_paired_cycler())
ax[2].plot(
df["cyc.time_seconds"],
df["veh.history.speed_ach_meters_per_second"],
label="f3",
)
ax[2].plot(
df_ss["cyc.time_seconds"],
df_ss["veh.history.speed_ach_meters_per_second"],
label="f3 (ss)",
)
ax[2].legend()
ax[2].set_xlabel("Time [s]")
ax[2].set_ylabel("Ach Speed [m/s]")
x_min, x_max = ax[2].get_xlim()[0], ax[2].get_xlim()[1]
x_max = (x_max - x_min) * 1.15
ax[2].set_xlim([x_min, x_max])
if is_hev:
ax[3].set_prop_cycle(get_uni_cycler())
ax[3].plot(
df_ss["cyc.time_seconds"],
df_ss["veh.pt_type.HEV.res.history.soc"],
label="soc",
)
ax[3].legend()
ax[3].set_xlabel("Time [s]")
ax[3].set_ylabel("SOC")
x_min, x_max = ax[3].get_xlim()[0], ax[3].get_xlim()[1]
x_max = (x_max - x_min) * 1.15
ax[3].set_xlim([x_min, x_max])
plt.tight_layout()
if SAVE_FIGS:
plt.savefig(Path("./plots/fc_pwr.svg"))
if SHOW_PLOTS:
plt.show()
return fig, axFuel converter shaft power, fuel power, and achieved speed for the baseline and stop/start runs. During stops, the stop/start run’s fuel power drops to zero while the baseline continues to use idle fuel.
fig, ax = plot_fc_pwr(df, df_ss)
The same comparison for the micro hybrid, with battery state of charge in the fourth panel.
fig2, ax2 = plot_fc_pwr(df, df_uhev, is_hev=True)
def plot_engine_on_flags(df: pd.DataFrame, df_ss: pd.DataFrame, is_hev: bool = False):
"""Plot engine flags."""
if not is_hev:
return
fig, ax = plt.subplots(2, 1, sharex=True, figsize=(10, 9))
plt.suptitle("Fuel Converter On Logic")
ax[0].set_prop_cycle(get_paired_cycler())
ax[0].plot(
df_ss["cyc.time_seconds"],
df_ss["veh.pt_type.HEV.pt_cntrl.StopStart.history.vehicle_not_stopped"],
label="not stopped",
)
ax[0].legend()
ax[1].set_prop_cycle(get_paired_cycler())
ax[1].plot(
df["cyc.time_seconds"],
df["veh.history.speed_ach_meters_per_second"],
label="f3",
)
ax[1].plot(
df_ss["cyc.time_seconds"],
df_ss["veh.history.speed_ach_meters_per_second"],
label="f3 (ss)",
)
ax[1].legend()
ax[1].set_xlabel("Time [s]")
ax[1].set_ylabel("Ach Speed [m/s]")
x_min, x_max = ax[1].get_xlim()[0], ax[1].get_xlim()[1]
x_max = (x_max - x_min) * 1.15
ax[1].set_xlim([x_min, x_max])
plt.tight_layout()
if SAVE_FIGS:
plt.savefig(Path("./plots/fc_onoff.svg"))
if SHOW_PLOTS:
plt.show()

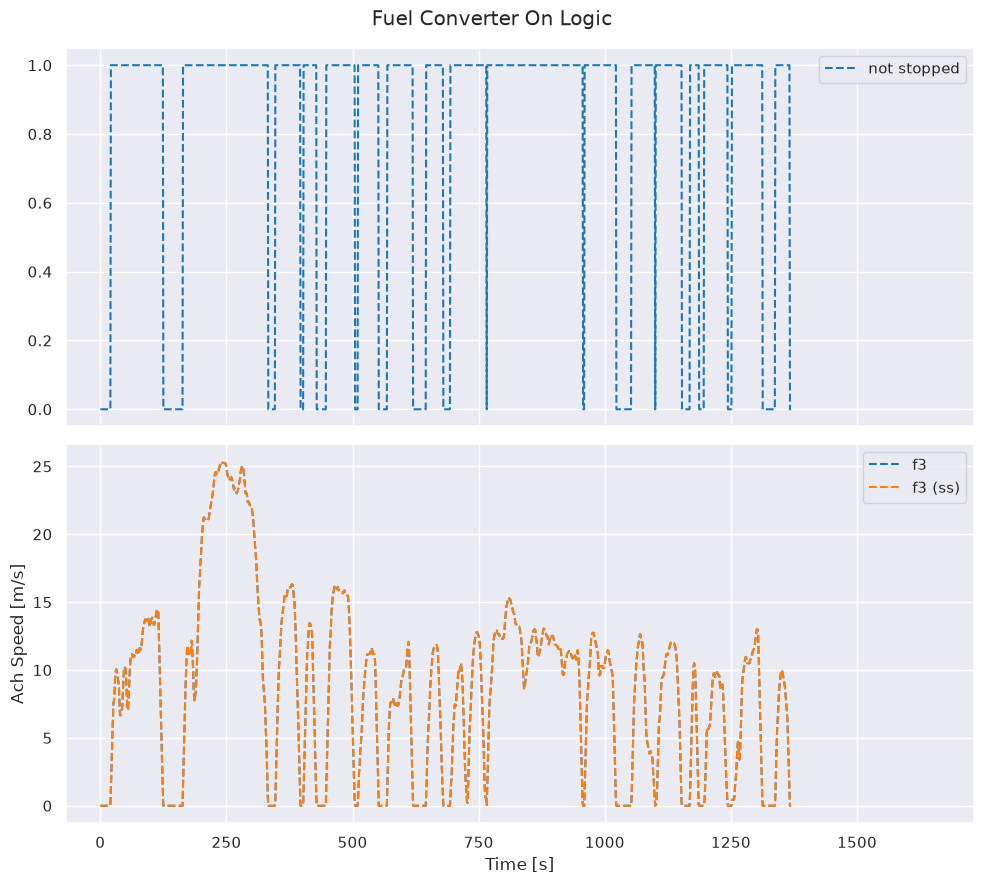

return fig, axThe micro hybrid stop/start controller’s vehicle_not_stopped flag, one
of the conditions that forces the engine on, plotted with achieved speed.
fig3, ax3 = plot_engine_on_flags(df, df_uhev, is_hev=True)
Source: fastsim/docs/demo_scripts/vehicle_controls/demo_stop_start.py
