Your first loop

This tutorial runs one optimization campaign from start to finish in the web app, about 20 minutes, with a simulated reactor standing in for the lab.

In the virtual reactor below, you type in the conditions ALchemist suggests, press Run experiment, and copy the result back. It models CO₂ hydrogenation to methanol over Cu/ZnO/Al₂O₃ (Vanden Bussche and Froment, 1996) with realistic measurement noise.

Open the reactor in its own window. Simulator version: commit 2ac5123.

Before you start

Install ALchemist, start alchemist-web and open http://localhost:8000; see Install. Put the app and the reactor (in its own window) side by side, since you will copy numbers between them.

The reactor has four settings. The goal is the methanol yield, in percent, as high as possible.

Variable in ALchemist Min Max Unit In the simulator
Temperature 200 300 °C Temperature
Pressure 20 80 bar (absolute) Pressure
H2_CO2 2 4 mol/mol H₂ : CO₂ ratio
WHSV 1.5 18 h⁻¹ Space velocity (WHSV)

Type the names exactly as in the first column. When you paste rows into the simulator, it reads the columns by these names.

1. Start a session

  1. On the welcome screen, choose New Session.
  2. Type a name, such as "Methanol reactor", and choose Save.

2. Define the variables

  1. In Variable Management, choose Add Variable.
  2. Type the Variable Name, Min, Max and Unit (optional) of the first row of the table, and choose Add Variable.
  3. Repeat for the other three. The list then reads "4 variables defined".

To skip the typing, save this as reactor_variables.json and open it with Load File instead:

[
  {"name": "Temperature", "type": "real", "min": 200, "max": 300, "unit": "°C"},
  {"name": "Pressure", "type": "real", "min": 20, "max": 80, "unit": "bar"},
  {"name": "H2_CO2", "type": "real", "min": 2, "max": 4, "unit": "mol/mol"},
  {"name": "WHSV", "type": "real", "min": 1.5, "max": 18, "unit": "h⁻¹"}
]

More on variable types and files: Define variables.

3. Generate the initial design

The model needs a first set of results that covers the whole range.

  1. In Initial Design (DoE), keep Method on LHS and Points at 10.
  2. Type 42 in Seed (opt). With this seed you get the same ten points as the screenshots on this site.
  3. Choose Generate Design, then Stage. Add Point... now reads "Add Point... (10)".

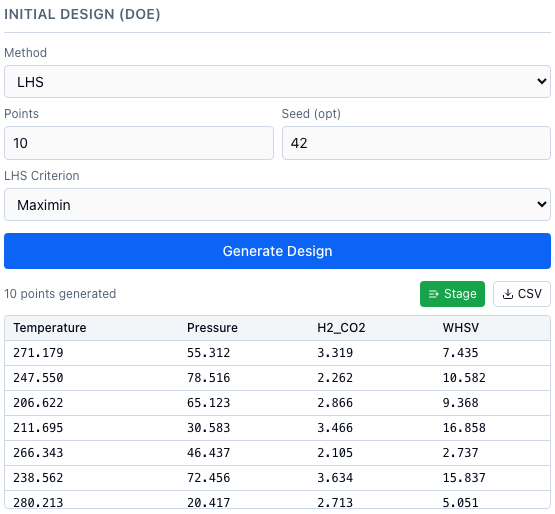

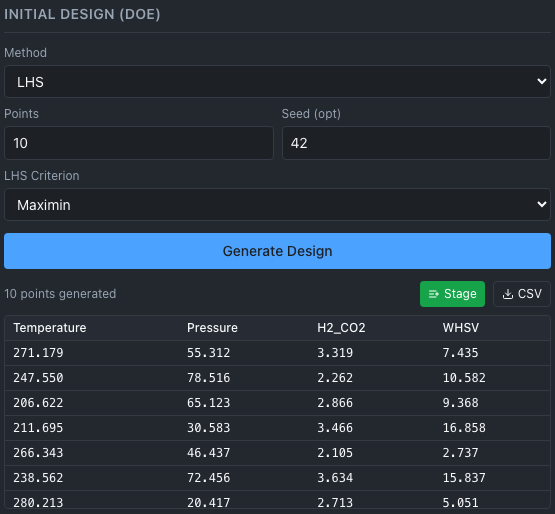

The Initial Design (DoE) panel with Method LHS, Points 10, Seed 42 and LHS Criterion Maximin, the text "10 points generated" beside the Stage and CSV buttons, and the first rows of the design table: Temperature, Pressure, H2_CO2 and WHSV. The Initial Design (DoE) panel with Method LHS, Points 10, Seed 42 and LHS Criterion Maximin, the text "10 points generated" beside the Stage and CSV buttons, and the first rows of the design table: Temperature, Pressure, H2_CO2 and WHSV.

The ten design points. Copy the table, header included, to run them in the simulator.

More: Initial design.

4. Run the design in the simulator

  1. Select the design table from its header row to the last row (it scrolls), and copy it. Or choose CSV and copy the contents of the saved file.
  2. Click the simulator page and paste. The setpoints turn into a queue of ten rows.
  3. Choose Run queue. The ten runs take about ten seconds, and a table of results replaces the queue.
  4. Choose Copy outputs. It copies the ten methanol yields, one per line, in the order of the design.

5. Record the results

  1. In Experiment Data, choose Add Point.... The Add Experimental Results dialog opens.
  2. Choose Table, click the first cell of the Output column, and paste. The ten yields fill the column.
  3. Untick Retrain model (once, after saving). There is no model yet; you train the first one yourself in the next step.
  4. Choose Save N & close, which reads "Save 10 & close".

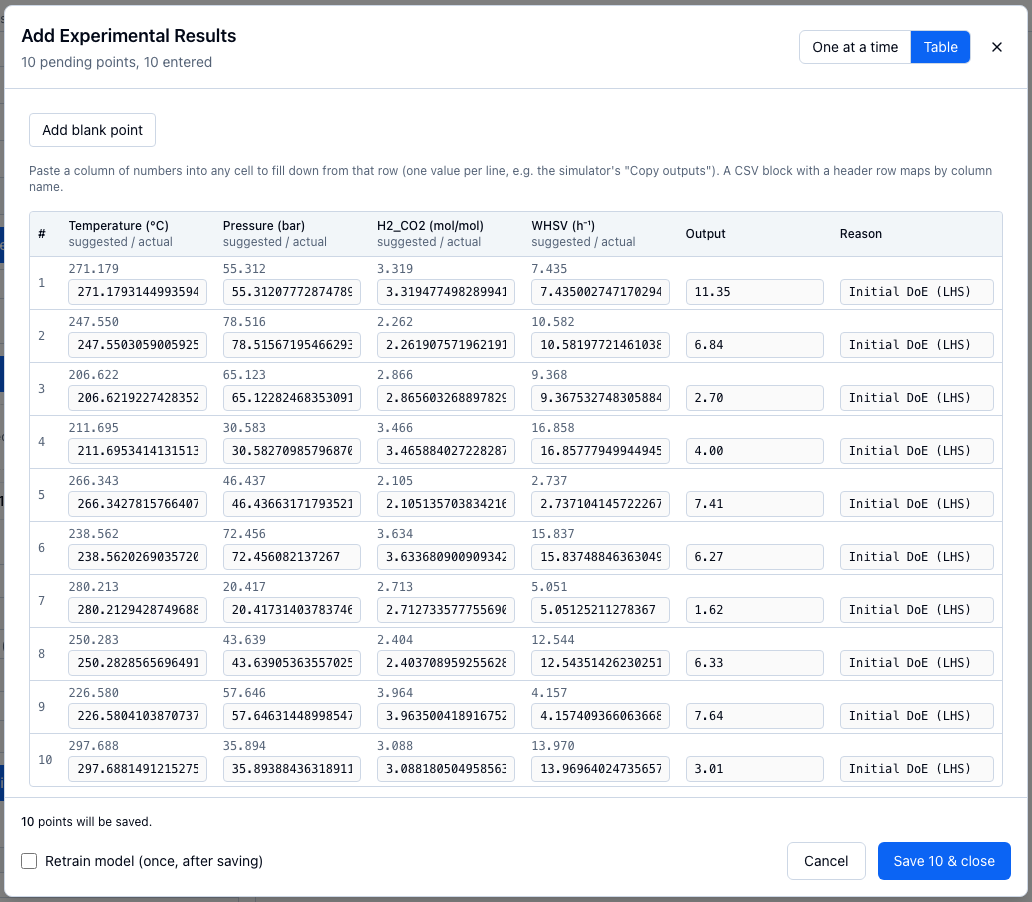

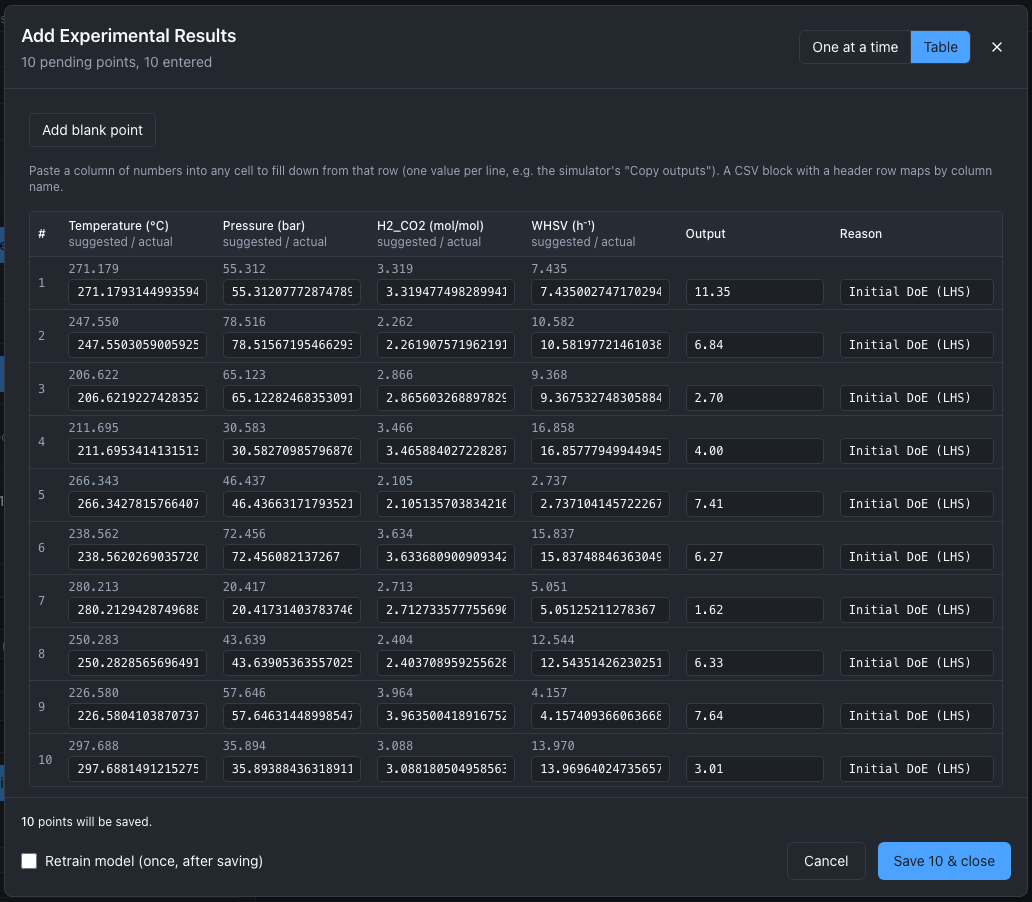

The Add Experimental Results dialog in the Table view: ten pending points with their suggested and actual values, the Output column filled with the pasted yields, an unticked Retrain model box and the Save 10 & close button. The Add Experimental Results dialog in the Table view: ten pending points with their suggested and actual values, the Output column filled with the pasted yields, an unticked Retrain model box and the Save 10 & close button.

The ten simulated yields, pasted in one go.

More: Run and record.

6. Train and check the model

  1. In the right-hand panel, open the Model tab and choose BoTorch. Keep the settings it shows.
  2. Choose Train Model. Trained Model Info shows the cross-validation RMSE, MAE and R².
  3. Choose Show Visualizations. The centre column opens on the parity plot: each result's prediction, made by a model that did not see it, against the measured yield.

With ten points the error bars are wide, and the R² of the screenshots' run is 0.78. Your numbers differ a little, because each browser gets its own measurement noise. More: Train a model and Check the model.

7. Suggest a batch of four

  1. Open the Acquisition tab and choose Batch.
  2. Keep q-Expected Improvement and Maximize, which are selected to start, and set Batch Size (q) to 4.
  3. Choose Run Acquisition Strategy. Suggested Experiments lists four points.
  4. Choose Stage Suggestions, once. Add Point... now reads "Add Point... (4)".

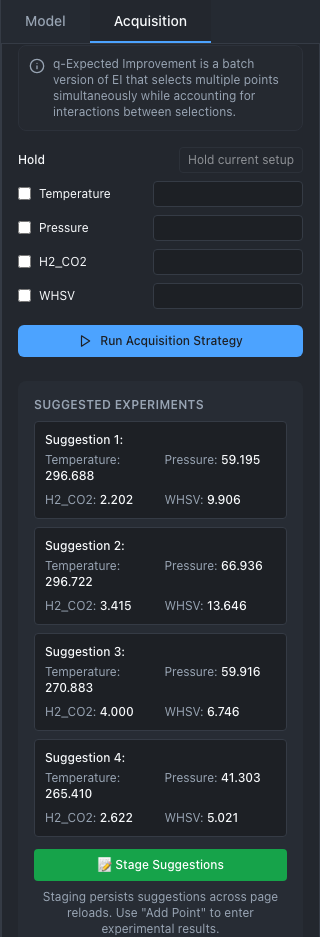

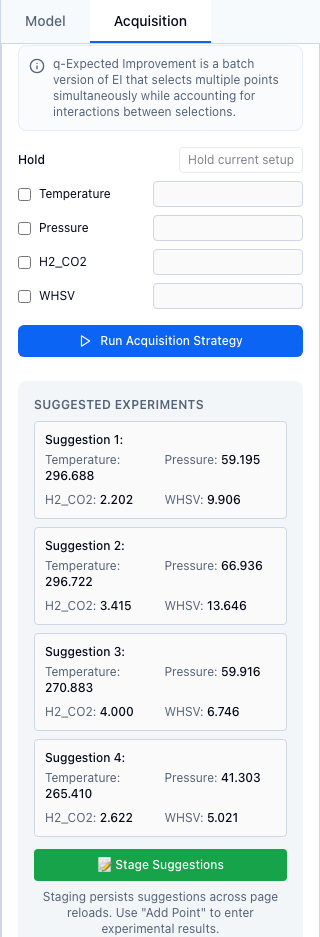

The Acquisition tab with four suggestions, each giving Temperature, Pressure, H2_CO2 and WHSV, above the Stage Suggestions button. The Acquisition tab with four suggestions, each giving Temperature, Pressure, H2_CO2 and WHSV, above the Stage Suggestions button.

A batch of four, staged.

Run the four in the simulator. Choose Back to setpoints, type the first suggestion's four values into the setpoint fields, and choose Run experiment. Repeat for the others, noting each methanol yield. Then choose Add Point...; in the One at a time view, type each yield into Output and press Enter, or choose Next →, to move to the next point. Leave Retrain model (once, after saving) ticked, and choose Save N & close. The model retrains with the BoTorch settings you chose. More: Suggest next.

8. Repeat, one point at a time

  1. In the Acquisition tab, choose Regular and Log Expected Improvement, then Run Acquisition Strategy and Stage Suggestions.
  2. Type the point's four values into the simulator's setpoint fields and choose Run experiment.
  3. Record its yield with Add Point..., the retrain box ticked.

Do this two or three times. In the screenshots' run, the best yield was 11.4 % after the design and 13.8 % after the batch; the next two points went to the most hydrogen and the slowest flow at high pressure, and gave 20.9 % and 21.5 %.

9. Find the optimum

  1. In Model Visualizations, choose Plot Contour. Put Temperature and Pressure on the axes, and move the H2_CO2 slider to its maximum and the WHSV slider to its minimum. Show Experimental Points and Show Next Point add the runs and the next suggestion.
  2. In the Acquisition tab, under Model Prediction Optimum, keep Maximize and choose Find Model Optimum. It reports the point with the best predicted yield and its uncertainty.

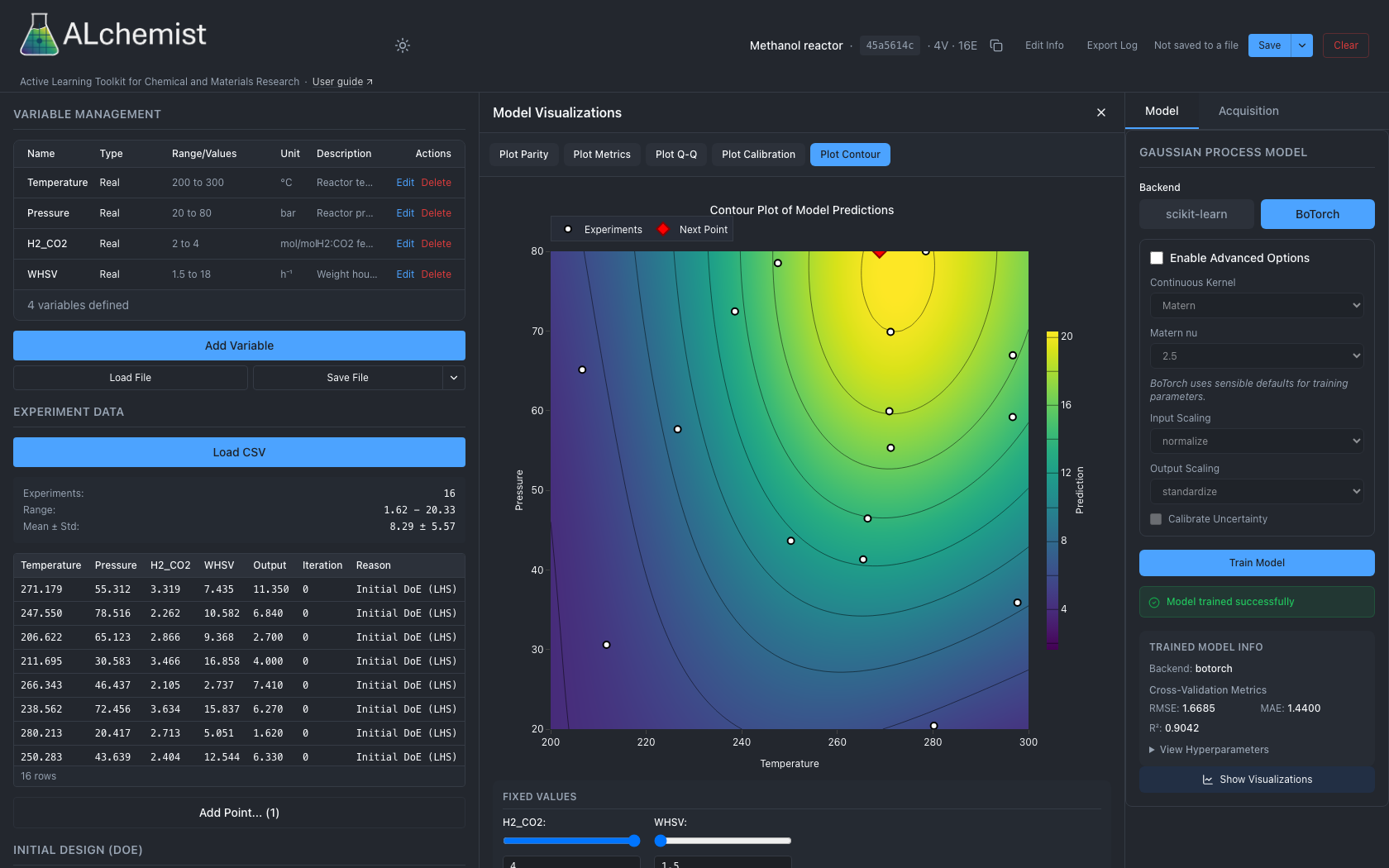

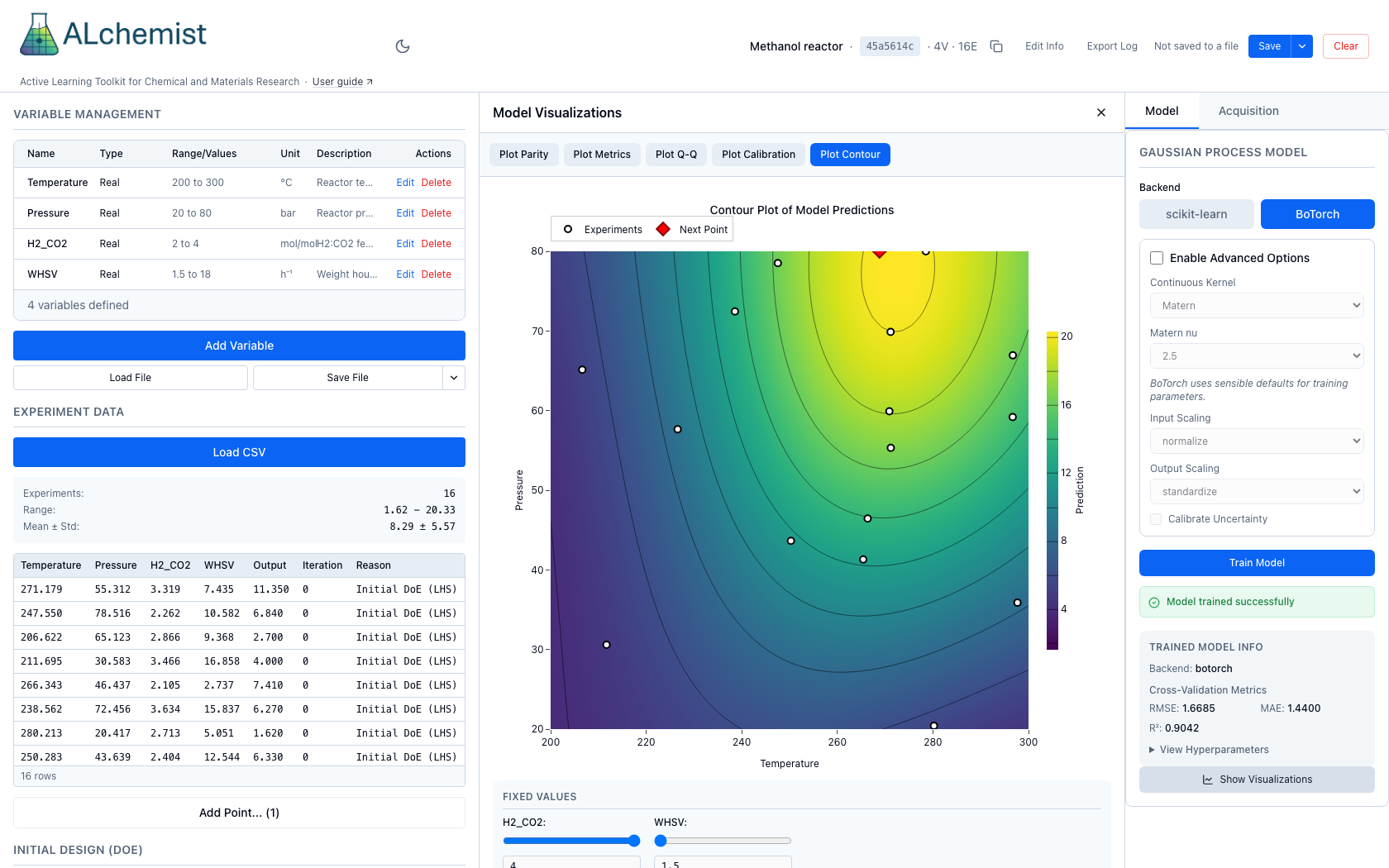

The whole app after 16 runs: the variables and results on the left, a contour of predicted yield over Temperature and Pressure in the centre, highest near 270 °C at 80 bar, with the runs as circles and the next suggestion as a red diamond, and the BoTorch model settings and metrics on the right. The whole app after 16 runs: the variables and results on the left, a contour of predicted yield over Temperature and Pressure in the centre, highest near 270 °C at 80 bar, with the runs as circles and the next suggestion as a red diamond, and the BoTorch model settings and metrics on the right.

Predicted yield at H₂ : CO₂ = 4 and WHSV = 1.5 h⁻¹ after 16 runs.

The simulator's true optimum, without noise, is a yield of 24.6 % at about 259 °C, 80 bar, H₂ : CO₂ = 4 and WHSV = 1.5 h⁻¹. Three settings sit at a bound, and only the temperature is inside its range, so a good campaign finds the corner quickly and spends its later runs on temperature. Between about 254 and 265 °C the yield stays within one noise standard deviation of the peak, so more runs there stop paying off: that is a reasonable place to stop.

10. Save the session

Choose Save in the header. Chrome and Edge ask where to put the file; other browsers download it. Load Session on the welcome screen opens it again. More: Sessions and audit log.

Why it works

Each round, the model predicts the yield everywhere with an uncertainty, and the acquisition function picks the points where a high yield is most likely, trading what the model knows against what it has not yet seen. Bayesian optimization explains the loop, and Acquisition functions the trade.
